Welcome to Shandong Hongfan Power Technology Co.,Ltd
20V190 CNPC JICHAI POWER 2MW gas piston genset sapre parts cylinder liner

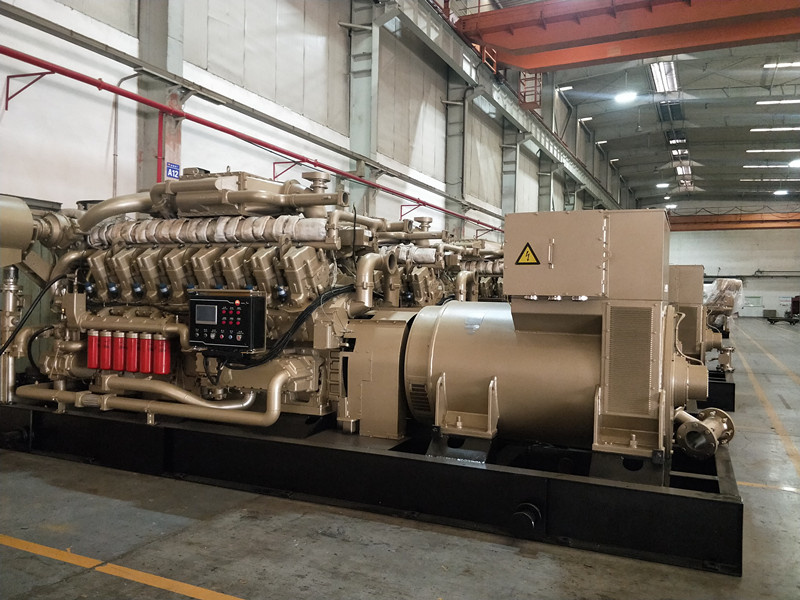

L20V190 2MW gas generator was designed and manufactured by CNPC JICHAI POWER. With the advantages of high efficiency and long power output, it has widely applied in Russia and African countries.
| General technical data | |
| Model | L20V190ZLT-2 |
| Engine configuration | Four stroke, water cooled turbocharging system, water cooled engine, fuel gas injection at mixer, air/fuel ratio control, sparkplug ignition, mixture before turbocharger |
| Engine arrangement | 20 cylinder, V 60° |
| Cylinder bore | 190mm |
| Stroke | 255mm |
| Total displacement | 144.6 L |
| Rated power | 1500-2100kW |
| Speed control method | Electronic speed governing system |
| Fuel gas consumption | ≤9000 kJ/kW.h |
| Natural gas feeding pressure | 1~4 bar |
| Lubricant oil consumption | ≤0.8g/kW.h |
| Oil filter | Screw in filter and centrifugal filter |
| Rotating direction | Counterclockwise (facing flywheel) |
| Cooling method | Forced water cooling, with engine radiator |
| Lubrication | Forced lubrication and splash lubrication |
| Startup method | Electric start motor |
Shandong Hongfan Power Technology Co., Ltd, specializes in sales, and technical services for diesel and gas generator sets and their parts, focusing on renowned domestic brands such as Jichai, Weichai, Shengdong, Zichai, and Sinotruk, located in the scenic city of Jinan, Shandong Province,
Our Strengths
Comprehensive Warehousing System
With two warehouses spanning over 2,000 square meters, the company ensures a fully stocked inventory of components, enabling quick response and timely delivery to meet diverse customer needs.
Expert Technical Team
The company boasts a highly skilled technical team with over 15 key professionals experienced in engine assembly, generator set installation, maintenance, and power station operations. The team is adept at executing medium and major repairs and on-site operations both domestically and internationally.
Product Offerings
Jinan Diesel Engine: Jichai 190 series, 6190, 8190, 12V190, 16V190 and 20V190 diesel and gas engine.
Shengdong Gas Generator: 500kW, 700kW gas generators.
Weichai Engines: 6170Z, 8170Z, CW6200, CW8200, R6160Z, WP12, and WP series.
Weichai Baudouin Series: 6M26, 6M33, 12M26, 12M33, 16M33, 12M55, M26, M33, M55 Series.
Zichai Engines: Z6170, Z8170, 6210, 8210, LB8250, LC8250, ZC6200, Z6180, Z8180, Z6150, 6300, 8300.
Generator Sets: (20-2000KW) from leading domestic brands such as Jichai, Shengdong, Zichai, Weichai and Yuchai.
Success Stories
The company has successfully completed various projects, showcasing its expertise and commitment to quality.
