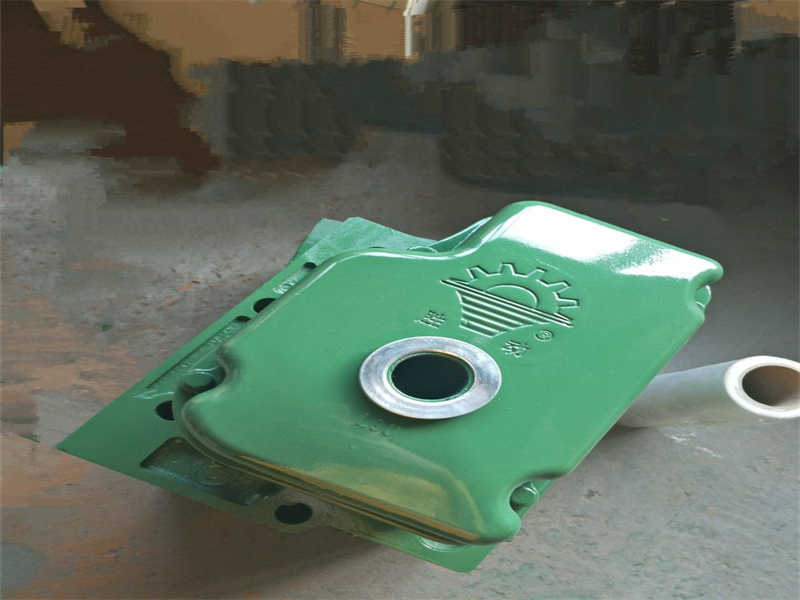

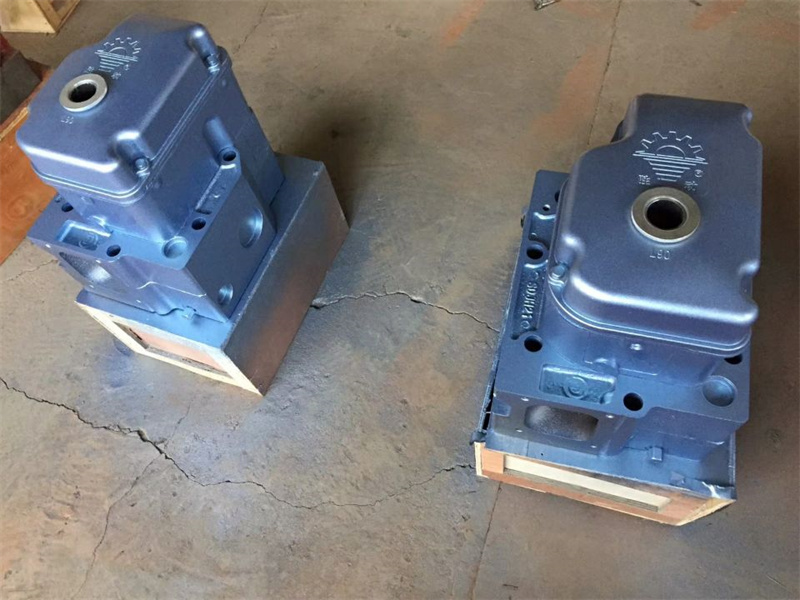

Головка цилиндра/cylinder head W12V190.03.00 for Gas Engine Units “Yonder” T12V190ZL-2A
1. Technical Parameters of the Generator Set
Parameter | Description |
Generator Set Model | YD700FD-CT1 |
Engine Model | T12V190ZL-2A |
Generator Model | JFG |
Rated Power (kW) | 700 |
Rated Current (A) | 80.2 |
Rated Voltage (V) | 6300 |
Power Factor (COSΦ) | 0.8 (lagging) |
Rated Frequency (Hz) | 50 |
Oil Consumption (g/kW·h) | ≤1 |
Starting Method | Electric start |
Voltage Regulation Mode | Automatic |
Speed Regulation Method | Electronic control |
Excitation Method | Brushless |
Wiring System | Three-phase, four-wire system |
Cooling Method | Closed type |
Coupling Type | Flexible coupling |
Dimensions (L×W×H, mm) | 5398×2000×2314 |
Weight (kg) | 13750 |
Container Size (L×W×H, mm) | 9000×3000×3000 |
2. Technical Parameters of the Engine
Parameter | Description |
Engine Model | T12V190ZL-2A |
Type | 4-stroke, spark ignition, water-cooled, turbocharged |
Number of Cylinders | 12 |
Cylinder Arrangement | V-type, 60° angle |
Cylinder Diameter (mm) | 190 |
Stroke (mm) | 210 |
Displacement (L) | 71.45 |
Rated Power (kW) | 750 |
Rated Speed (rpm) | 1000 |
Minimum Stable No-load Speed (rpm) | 700 |
Oil Consumption (g/kW·h) | ≤0.8 |
Fuel Consumption (MJ/kW) | 10 |
Exhaust Temperature (°C) | ≤600 |
Outlet Water Temperature (°C) | ≤85 |
Main Oil Line Pressure (kPa) | 400–800 |
Turbocharger Oil Pressure (kPa) | 200–400 |
Speed Droop (%) | ≤5 |
Cooling System | Forced water circulation with radiator cooling |
Lubrication System | Combined pressure and splash lubrication |
Ignition System | Spark plugs |
Starting System | 24V DC alternator |
Crankshaft Rotation | Counterclockwise |
Output Power | Flywheel output |
3. Technical Parameters of the Generator
Parameter | Description |
Generator Model | JFG |
Rated Power (kVA) | 875 (700 kW) |
Rated Speed (rpm) | 1000 |
Rated Voltage (V) | 6300 |
Rated Current (A) | 80.2 |
Rated Frequency (Hz) | 50 |
Power Factor | 0.8 |
Insulation Class | F |
Protection Class | IP23 |
Cooling Method | Air-cooled |
Product Offerings
Jinan Diesel Engine: Jichai 190 series, 6190, 8190, 12V190, 16V190 diesel and gas engine.
Shengdong Gas Generator: 500kW, 700kW gas generators.
Weichai Engines: 6170Z, 8170Z, CW6200, CW8200, R6160Z, WP12, and WP series.
Weichai Baudouin Series: 6M26, 6M33, 12M26, 12M33, 16M33, 12M55, M26, M33, M55 Series.
Zichai Engines: Z6170, Z8170, 6210, 8210, LB8250, LC8250, ZC6200, Z6180, Z8180, Z6150, 6300, 8300.

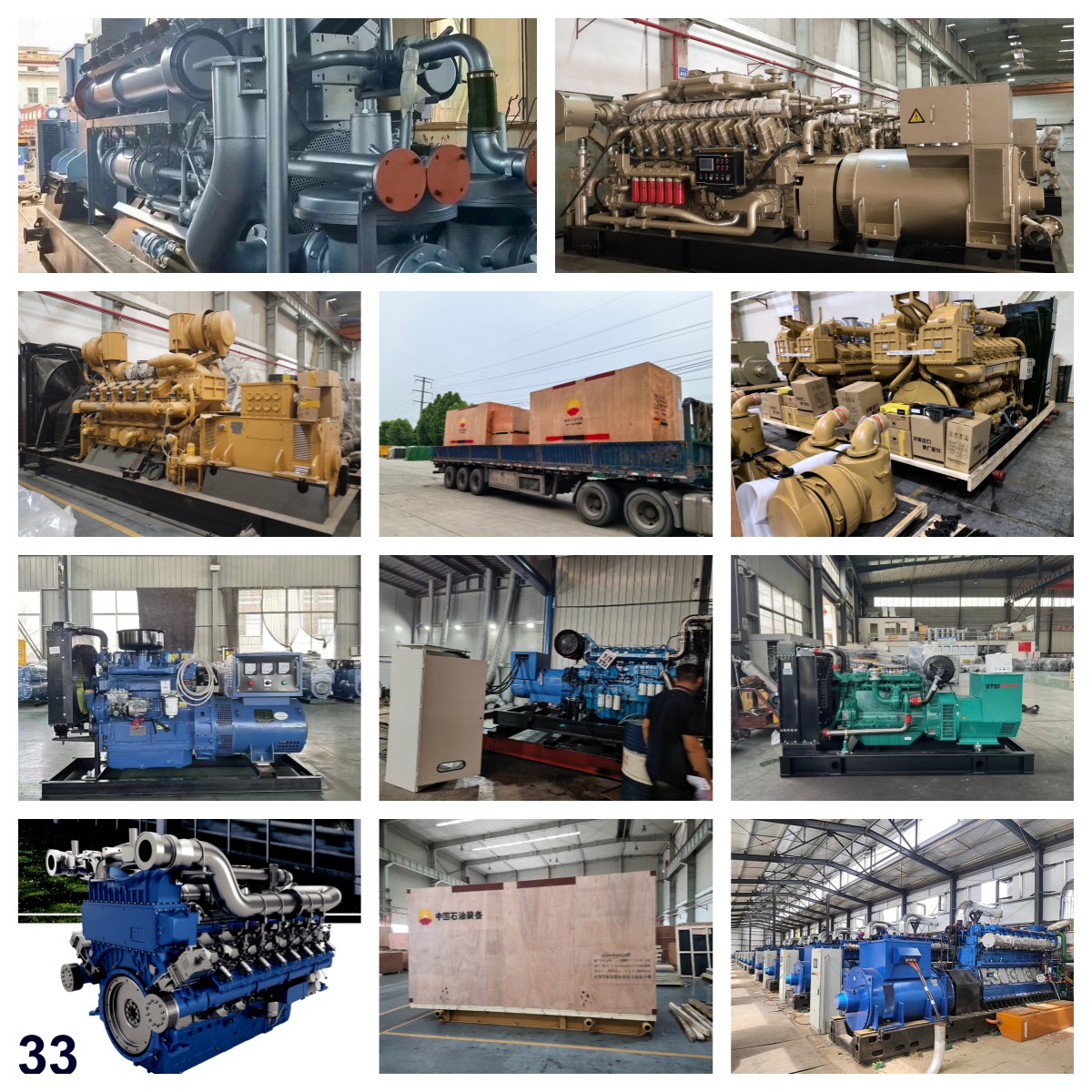

Generator Sets: (20-2000KW) from leading domestic brands such as Jichai, Shengdong, Zichai, and Yuchai.

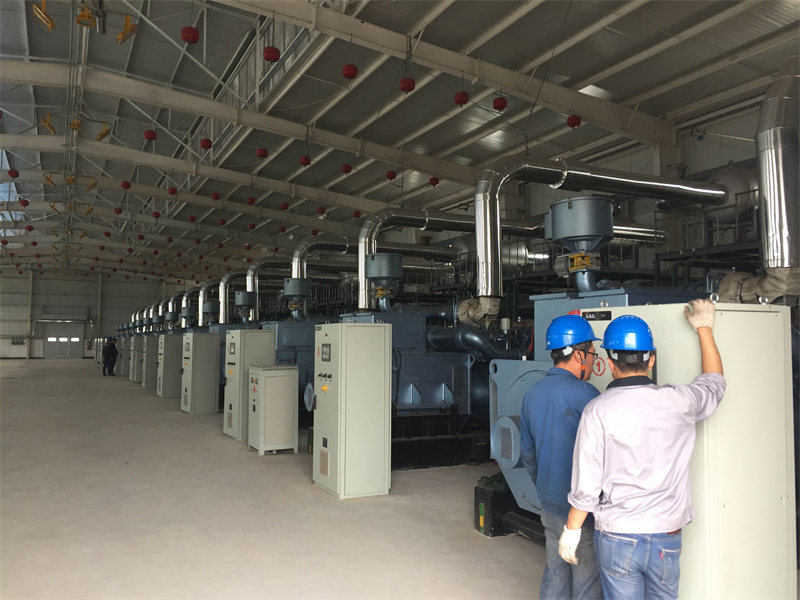

Success Stories
