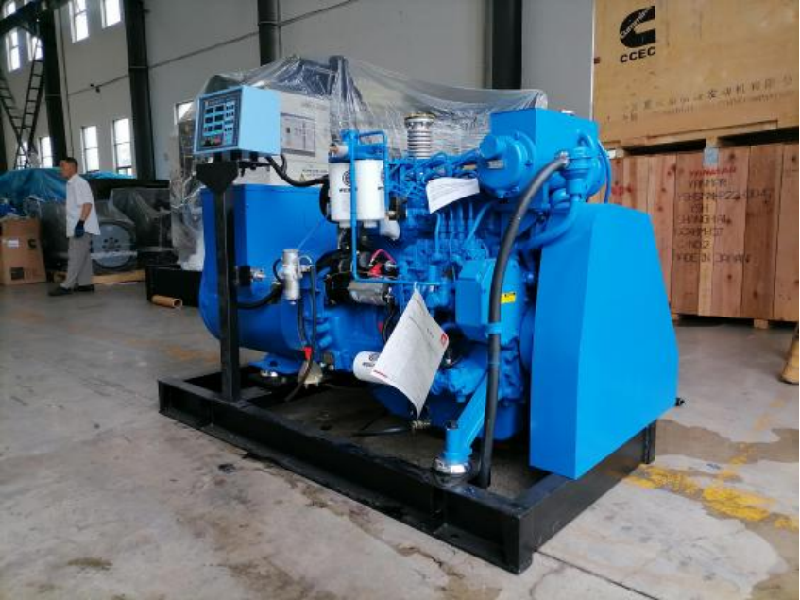

80KW/100KVA marine diesel generator equivalent of Baudouin 4W105S
Technical Specification for WEICHAI Marine Type Generator Set Rated Power 80KW/100KVA CCFJ80J-W
MARINE DIESEL GENERATOR DATA:
Model | : CCFJ80J-W |
Rated power | : 80KW/100KVA |
Rated voltage | : 400V |
Rated frequency | : 50HZ |
Open type dimension | : 1695x1250x1210 MM |
Weight | : 1350KG |
ENGINE DATA: Brand |
: WEICHAI |
Model | : WP4CD100E200 |
Rated power | : 90KW |
Rated speed | : 1500RPM |
Displacement | : 4.5L |
Bore*Stroke | : 105*130MM |
Type | : In-line,4 cylinders |
Intake air system | : Nature-Aspiration |
Aspiration | : Turbocharged and Aftercooled |
Cooling system | : Sea water heat exchange cooled |
Speed governor | : Machinery speed control |
Starter | : DC24V electric |
Oil consumption | : 20.5L/h(100% fully loaded) |
Oil capacity | : 13L |
ALTERNATOR DATA: Brand |
: LEROY-SOMER |
Model | : LSAM 44.3 S5 |
Rated power | : 80kw |
Rated speed | : 1500RPM |
Rated voltage | : 400V |
Rated frequency | : 50HZ |
Type | : Brushless,self-excited,AVR |
Protection class | : IP23 |
Insulation | : H |
Phase&wire | : 3P3W |
Power factor | : 0.8(lagging) |
CONTROL SYSTEM DATA:
The model of the marine controller is FUCHUANG FJ4000D4-23.
Marine controller is a micro-computer control of diesel engine electronic control system, automatic diesel engine and diesel engine more limited protection of electronic equipment. Can monitor the engine speed, oil pressure, oil temperature, cooling water temperature, fuel leaks and other parameters for automatic measurement, digital display, multi-parameter integrated monitoring and overage protection, and a sound and light alarm signals, control over implementing agencies to cut off fuel oil, automatic control of diesel engine emergency stop.
SCOPE OF SUPPLY:
Marine diesel generator 1 Set
Open type 1 Set
Control system 1 Set
Standard maintenance tool 1 Set
DOCUMENTATION:
Engine documents including instructions 1 Set
Alternator documents including instructions 1 Set
Control system documents 1 Set
Generator set operation&manual 1 Pcs
Generator set testing report 1 Pcs
Electric drawing 1 Set
FACTORY ACCEPTANCE TEST (FAT):
The safety function test for the generator set will be carried out in Power Limited factory in China. All consumables items during the test will be provided.
