G12V190PZL1 1000KW 1500r/min diesel engine used in oil field
Overview
The G12V190PZL1 is a high-performance diesel engine developed by CNPC Jichai Power, also known as Jinan Diesel Engine Co., Ltd (JDEC) or Chidong. It belongs to the G12V190PZL series, which includes variants such as G12V190PZL1, G12V190PZL-3, and G12V190PZL.
Technical Specifications
| № | Name | Rated Power (KW) | Rated Speed (r/min) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1 | G12V190PZL1 | 1000 | 1500 | 3860×2040×2678 | 8100 |
Engine Type
Four-stroke, direct injection combustion chamber
Water-cooled, turbocharged, and after-cooled
Cylinder Configuration
Number & Layout: 12 cylinders, V-type at 60°
Bore (mm): 190
Stroke (mm): 210
Total Displacement (L): 71.45
Compression Ratio: 14:1
Temperature Limits
Exhaust Gas Temperature (℃): ≤600
Coolant Drainage Temperature (℃): ≤90
Sump Oil Temperature (℃): ≤95
Performance & Control
Stable Speed Regulation Rate (%): ≤8
Cooling Method: Water cooling
Lubrication Method: Pressure & splash lubrication
Starting Method: Air motor
Supply Scope
Diesel Engine
Radiator
Standard Spare Parts
Special Tools
Exhaust Pipe & Muffler (Optional, 15,000/set)
Conclusion
Hongfan Power has rich experience in suppling parts and engines of 12V190 diesel engine. Relying on our professional knowledge, we can help you chose the correct part no for your engine model, which is beneficial for your use and avoid economic loss.

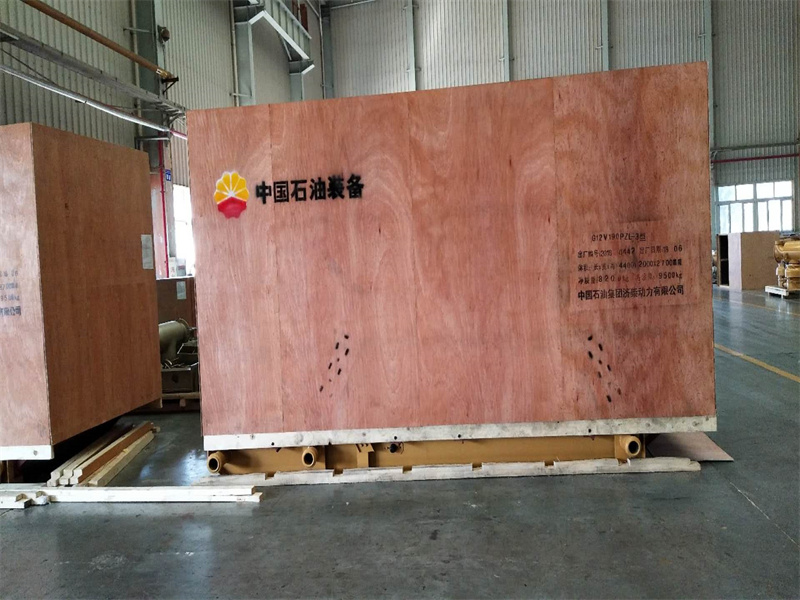

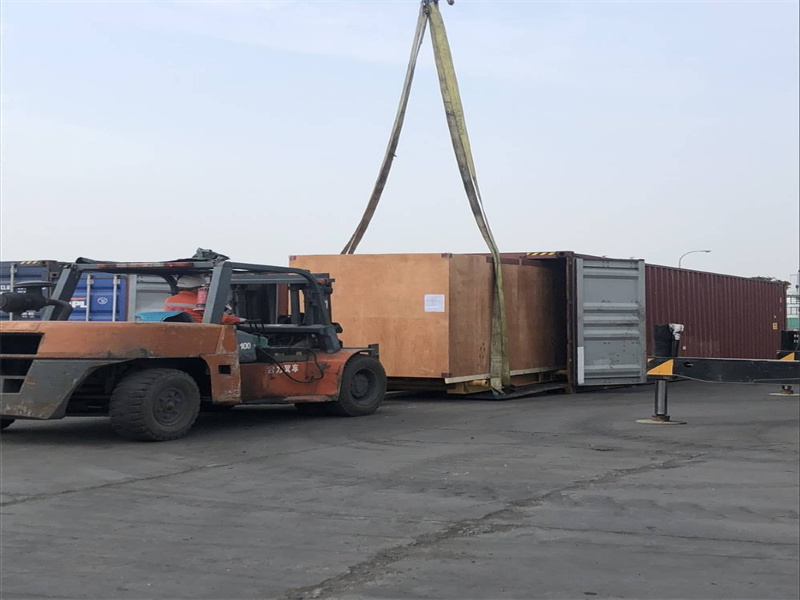

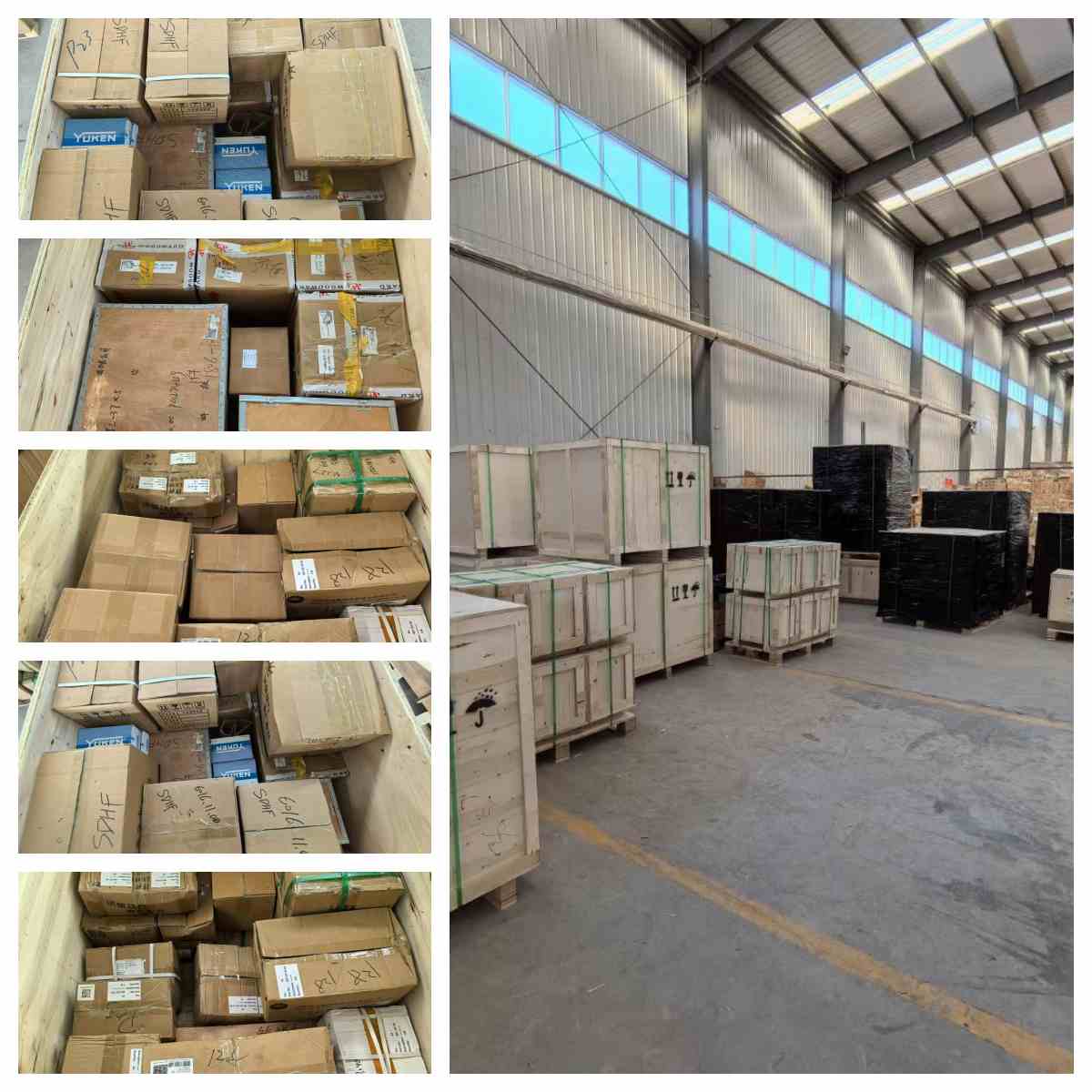

G12V190PZL ENGINE SHIPMENT
