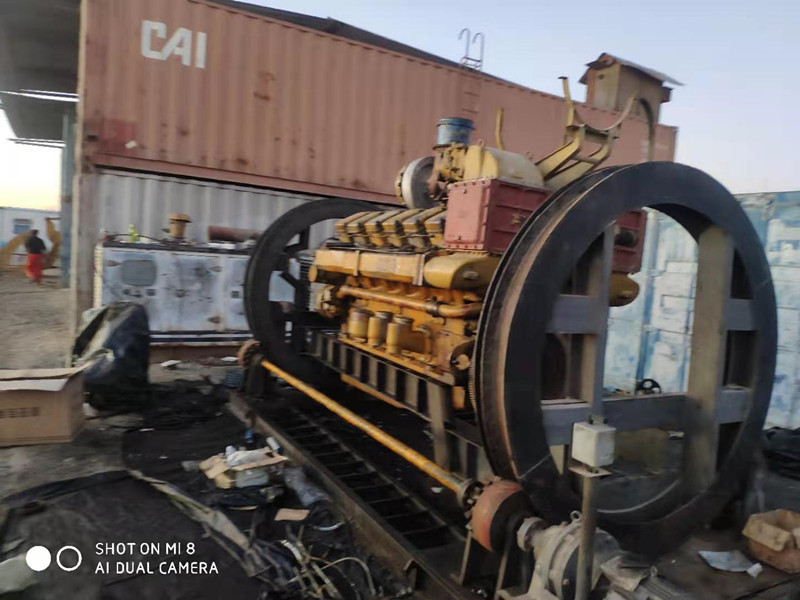

Oil pump 160A.11B.00 of Weichai 6160 diesel engine for ship vessel


Section 1: R6160 Fuel Injector and Fuel Pump

The fuel injector and pump are the most precise component pairs in a diesel engine. Improper use or maintenance, or unclean fuel, may cause the injector needle valve to overheat, deform, or seize. These failures typically lead to increased fuel consumption, reduced power output, high exhaust temperatures, and excessive exhaust smoke.


Section 2: Weichai R6160 Intake and Exhaust Valve Adjustment Chart

(1) For Firing Order: 1-5-3-6-2-4

Cylinder No.123456
At TDC of Cylinder 1 (Expansion Stroke)Intake & ExhaustIntakeExhaustIntakeExhaust-
At TDC of Cylinder 6 (Expansion Stroke, 360° rotation)-ExhaustIntakeExhaustIntakeIntake & Exhaust

(2) For Firing Order: 1-4-2-6-3-5

Cylinder No.123456
At TDC of Cylinder 1 (Expansion Stroke)Intake & ExhaustExhaustIntakeExhaustIntake-
At TDC of Cylinder 6 (Expansion Stroke, 360° rotation)-IntakeExhaustIntakeExhaustIntake & Exhaust

Section 3: 6160 Fuel Injection Timing Adjustment

Fuel injection timing significantly affects the engine's power, efficiency, reliability, and emissions. Adjustment procedure:

  1. Remove the high-pressure fuel pipe from cylinder 1 and install a test tube on the delivery valve holder.

  2. Set the fuel pump governor lever to maximum fuel delivery.

  3. Rotate the fuel pump plunger with a screwdriver until fuel appears in the test tube; then stop.

  4. Loosen the cylinder head vent screw and turn the flywheel in the engine's working direction.

  5. When the fuel in the glass tube just begins to rise, stop rotating; the pointer reading indicates the fuel injection start point.

  6. Check each cylinder in sequence according to the firing order (1-5-3-6-2-4 or 1-4-2-6-3-5).


Section 4: Common Faults and Troubleshooting

(A) Engine Fails to Start

No.Cause AreaTroubleshooting Method
1Usage

(1) Battery lowCheck battery gravity (1.28–1.30); insulate in winter

(2) Start lever not in positionRotate the handle to start position

(3) Engine under loadDisengage load

(4) High oil viscosityChoose appropriate oil or preheat

(5) Air in fuel systemBleed air from system

(6) Water in dieselDrain water from fuel tank and filters

(7) Incorrect diesel typeChoose diesel based on season/location
2Fuel System

(1) Leaky fuel pipe jointsTighten connections

(2) Blocked pipesClean or blow through

(3) Blocked fuel filtersClean or replace filters

(4) Injector spray issueAdjust or replace needle valve parts

(5) Incorrect injection timingAdjust per specifications

(6) Damaged pump/injectorRepair or replace
3Others

(1) Valve leakageReseat valves and adjust clearance

(2) Cylinder leakageCheck gasket, tighten bolts

(3) Broken valve springReplace spring

(4) Piston ring leakageReplace rings

(5) Piston seizureDisassemble and repair

(6) Water in cylinderRemove head, drain water, find cause
Oil pump 160A.11B.00


(B) Engine Cannot Reach Rated Power

No.Cause AreaTroubleshooting Method
1Usage

(1) Low RPMAdjust to rated speed

(2) High altitude or temperatureApply correction factor using power correction chart
2Fuel System

(1) Injector faultAdjust or repair

(2) Uneven fuel deliveryAdjust or repair pump

(3) Worn fuel pumpAdjust gear rack or replace plunger

(4) Blocked fuel filtersInspect, clean, adjust or replace

(5) Wrong fuel typeChoose correct grade for environment

(6) Incorrect timingCheck and adjust
3Valve Timing

(1) Dirty air filterClean thoroughly

(2) High exhaust back pressureRedesign exhaust system

(3) Valve leakageInspect and reseat valves

(4) Incorrect valve timingCheck and correct timing
4Other Factors

(1) Low compressionAdjust or replace piston rings

(2) Cylinder scuffingRepair or replace

(3) Inadequate coolingCheck belts, cooling system

(4) Poor lubricationRepair or clean lubrication system
