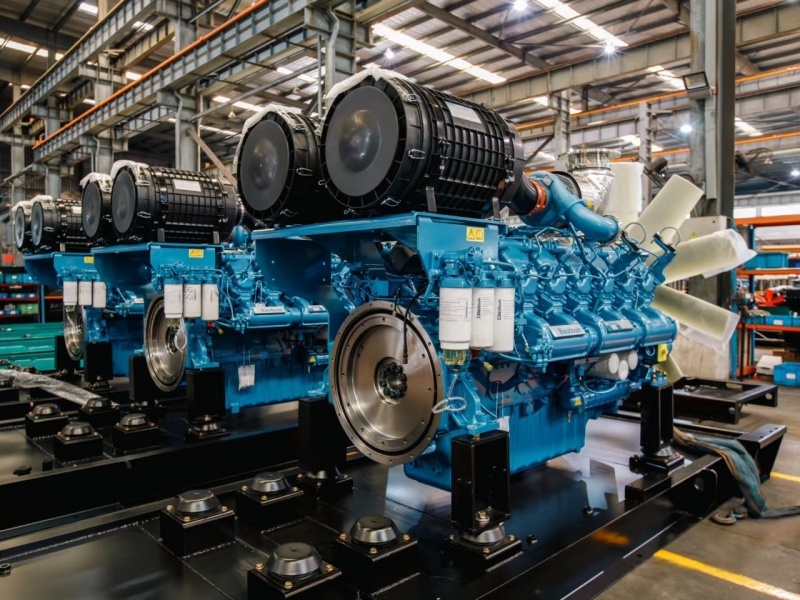

BAUDOUIN 1200HP 12M33C1200-18 Marine Engine for Tourist Boats

Weichai Baudouin 12M33 Series Marine Engine

General Specifications

• Bore & Stroke: 150 × 185 mm

• Displacement: 39.2 L

• Cylinder Number: 12V

• Compression ratio: 15:1

• Fuel System: Mechanical Pump

• Aspiration: TA

• Emission Standard: IMO Tier Ⅱ

Power Rating – 1500 RPM

Power Rating – 1800 RPM

Standard Equipments

Engine and block

• Cast iron gantry type structure block

• One-piece casting crankshaft

• Separate cast iron cylinder heads and wet liners

• Aluminum alloy pistons with gallery oil cooling

Cooling system

• Fresh / raw water heat exchanger with integrated thermostatic valves and expansion tank

• Cast iron centrifugal fresh water pump, mechanically driven

• Self-priming raw water pump, mechanically driven

Lubrication system

• Filter with metal element, washable

• Water cooled lube oil cooler

Fuel system

• P-type in-line injection pump

• Dual-skinned fuel pipe with alarm and leakage collector

• Duplex fuel filters replaceable during engine running

Intake air and exhaust system

• Washable air filter

• Turbocharger optimized for marine application

• Water jacket exhaust manifold and exhaust expansion joint

Electrical system

• 24V electric starter motor and battery charging alternator

• Voyage safeguard monitor and 5m harness

Certification

• CCS and EIAPP
