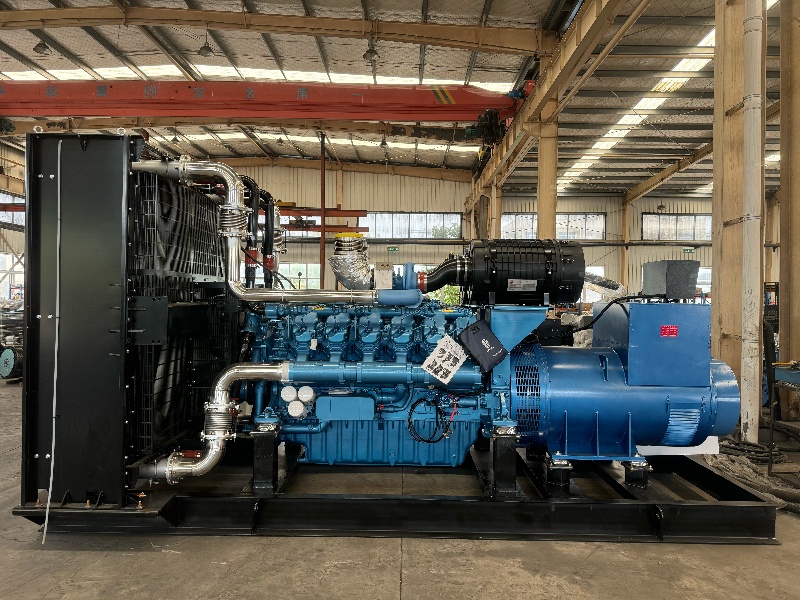

Weichai Baudouin 1000KW diesel generator Engine: 12M33D1210E200

Technical Parameters of Weichai 1000GF/1250KVA High-Voltage Diesel Generator Set

I. Product Configuration List

Item	Name & Specification	Quantity	Origin/Brand	Remarks
1	Engine: 12M33D1210E200	1 unit	Weichai Baudouin	Joint Venture
2	Generator: HJG-1000/6300	1 unit	Domestic (China)	-
3	Control System: HGM6110 Intelligent LCD	1 set	Domestic (China)	-
4	High-Voltage Switchgear for Generator Set Outlet	1 set	Domestic (China)	-
5	Storage Batteries (2 pcs)	1 set	Domestic (China)	-
6	Independent Fuel Tank / 1500L	1 set	Domestic (China)	-
7	Water Jacket Heater	1 set	Domestic (China)	-
8	Exhaust Muffler	1 set	Domestic (China)	-
9	Shock-Absorbing Hose (Bellows)	1 set	Domestic (China)	-
10	Battery Connection Cable	1 set	Domestic (China)	-
11	Shock-Absorbing Rubber Pad	1 set	Domestic (China)	-
12	……	……	……	……

Supplied Documentation (Details)
A. Original Diesel Engine Documentation – 1 set
B. Generator Installation, Operation & Maintenance – 1 set
C. Generator Set Operation & Maintenance Manual – 1 set
D. Generator Set Test Report – 1 set
E. Generator Set Certificate of Conformity – 1 set

II. Equipment Performance Description

(I) Technical Parameter Table of 1000KW High-Voltage Automatic Generator Set

Generator Set Model: 1000GF
Continuous Power (KW/KVA): 1000/1250
Standby Power (KW/KVA): 1100/1375
Rated Voltage (V): 6300
Rated Current (A): 114.6
Rated Frequency (Hz): 50
Power Factor: 0.8 (lagging)
Wiring System: Three-phase Four-wire
Rated Speed (r/min): 1500
Voltage Adjustment Range (%): ≥±5
Voltage Regulation (%): ≤±1
Frequency Regulation (%): ≤3
Voltage Fluctuation Rate (%): 0.5–1
Frequency Fluctuation Rate (%): 0.5–1
Voltage Stabilization Time under Sudden Load Change (s): ≤3
Frequency Stabilization Time under Sudden Load Change (s): ≤3
Waveform Distortion Rate (%): ≤1

Starting Method: Electric Start
Starting Battery Voltage (V): 24
Starting Time (s): ≤5
Fuel Consumption Rate (g/kw·h): ≤203
Oil Consumption Rate (g/kw·h): ≤0.5
Noise Level (dB(A)): Open-frame ≤105; Silent ≤85
Generator Set Structure: Direct-coupled integrated type
Reference Overall Dimensions (mm):

Container-type: 12192×2438×2896
Open-frame: 4800×2200×2450
Reference Weight (kg):
Container-type: 11300
Open-frame: 7860

2. Technical Parameters of Generator Set Automatic Control Panel

Adopts microcomputer intelligent module with Chinese-English LCD display.
Provides full monitoring and protection for the generator:

Displays line voltage, line current, output active power, power factor, frequency.
Monitors engine parameters: lubricating oil pressure, cooling water temperature, speed, battery voltage.
Protection includes: low oil pressure, high water temperature, overspeed, underspeed, undervoltage, overcurrent, output short circuit, and open/short circuit sensor protection.

Control Panel Function:
Human-machine integrated intelligent parallel control system with full generator set control and protection.

3. Generator Set Operating Environment

Ambient Temperature: ≤40℃
Relative Humidity: ≤35%
Altitude: ≤1000 m

4. Technical Parameters of the Diesel Engine

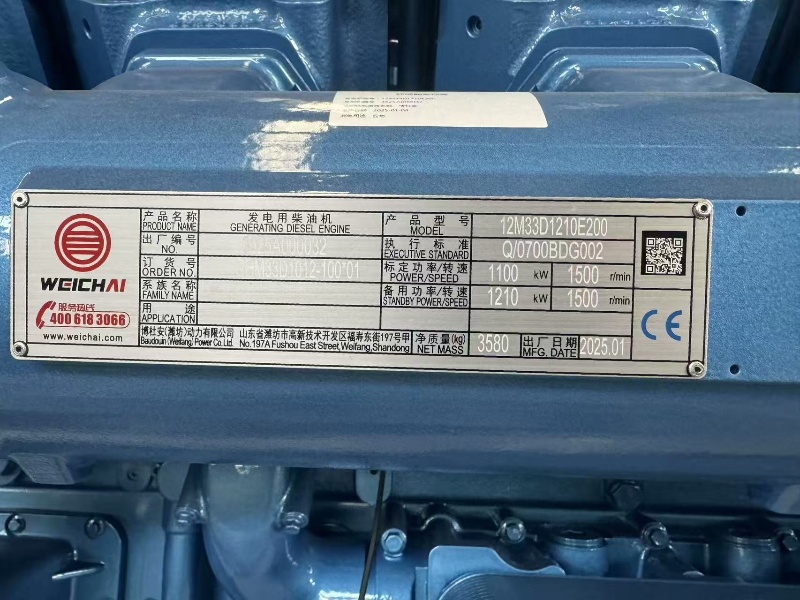

Engine Model: WEICHAI 12M33D1210E200
Rated Speed: 1500 rpm
Rated Power: 1100 kW
Standby Power: 1210 kW
Bore & Stroke: 150×185 mm
Displacement: 39.2 L
Number of Cylinders: 12
Fuel System: Mechanical Pump
Speed Governing: Electronic
Air Intake: Turbocharged with Intercooling
Starting Method: DC24V Electric Start

Fuel Filter Type: Dual Fuel Filters, Spin-on Type
Fuel Consumption (L/h):

110% Load: 284
100% Load: 255
75% Load: 188
50% Load: 125
Recommended Fuel: For ambient temperature ≥ -5℃: -10# GB252

Air Filter: Dry Type
Air Filter Flow Rate (kg/h): 6840
Air Consumption (kg/h): 4719 @ Rated, 5263 @ Standby
Max Intake Negative Pressure (kPa): ≤3

Cooling System:
