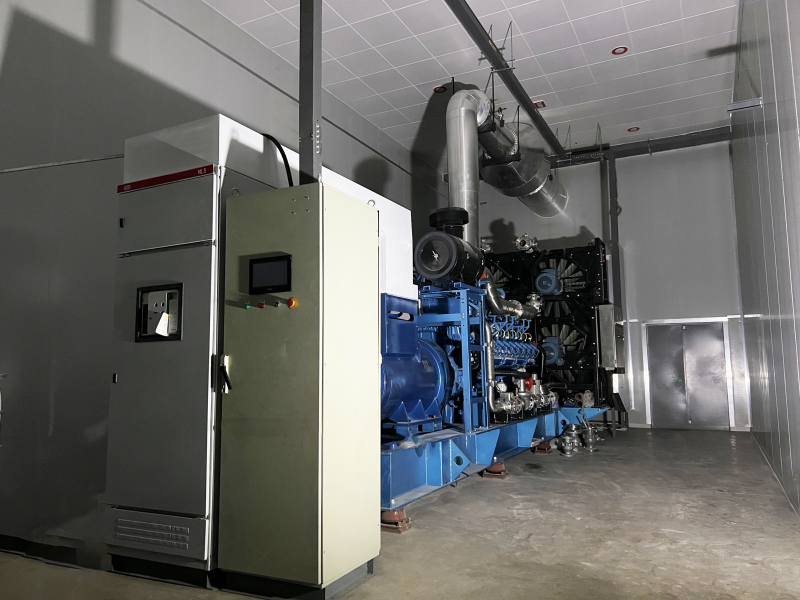

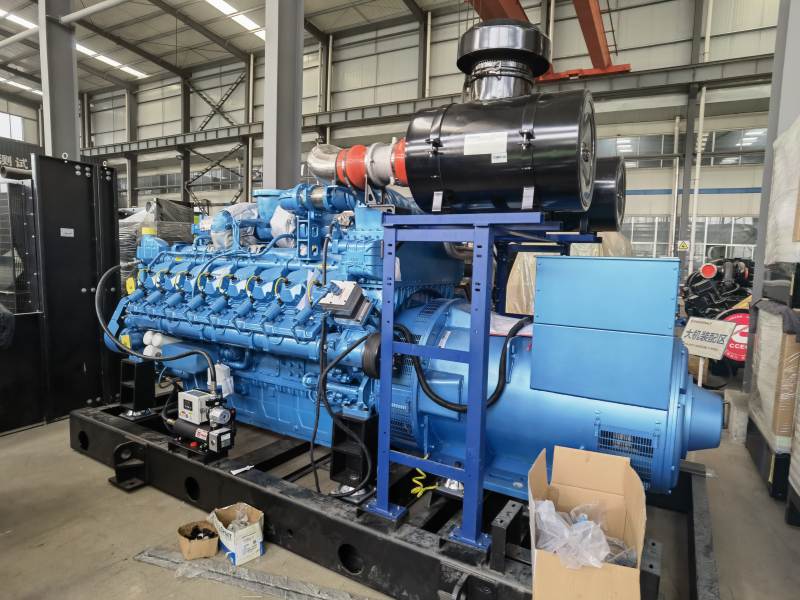

Weichai 1MW 16M33D1280NG11 natural gas generator
Generator Parameters
Generator Parameters | |
Model | HF1000NG |
Rated output power (KVA/KW) | 1250/1000 |
Rated output current (A) | 1800 |
Frequency (Hz) | 60 |
Output voltage | 480V |
Power factor | 0.8（lag） |
generator weight (kg) | 12000 about |
Container shell (length * width * height) (mm) |
12000*2350*2600 |
Main parameters of the engine | |
Model | Weichai 16M33D1280NG11 |
Type | V type 、water-cooled |
Air Intake method | Turbocharged Intercooled |
Total displacement (L) | 52.3L |
Cylinder - Bore x stroke (mm) | 16-150x185 |
Rated prime power | 1280 |
Speed (r/min) | 1500 |
Compression ratio | 12.5:1 |
Start mode | Electric start |
Main parameters of the alternator | |
Model | LSA49.3 L10 |
Power(KVA/KW) | 1250/1000 |
Protection grade | IP23 |
Insulation level | H |
Power factor | 0.8 lag |
Voltage fluctuation rate (%) | ≤±0.5 |
Rated voltage (V) | 480V |
Adjustment range of no-load voltage | ≥±5% |
Voltage control mode | AVR |
Efficiency (%) | 98.6 |
Connection | Three-phase four-wire |
