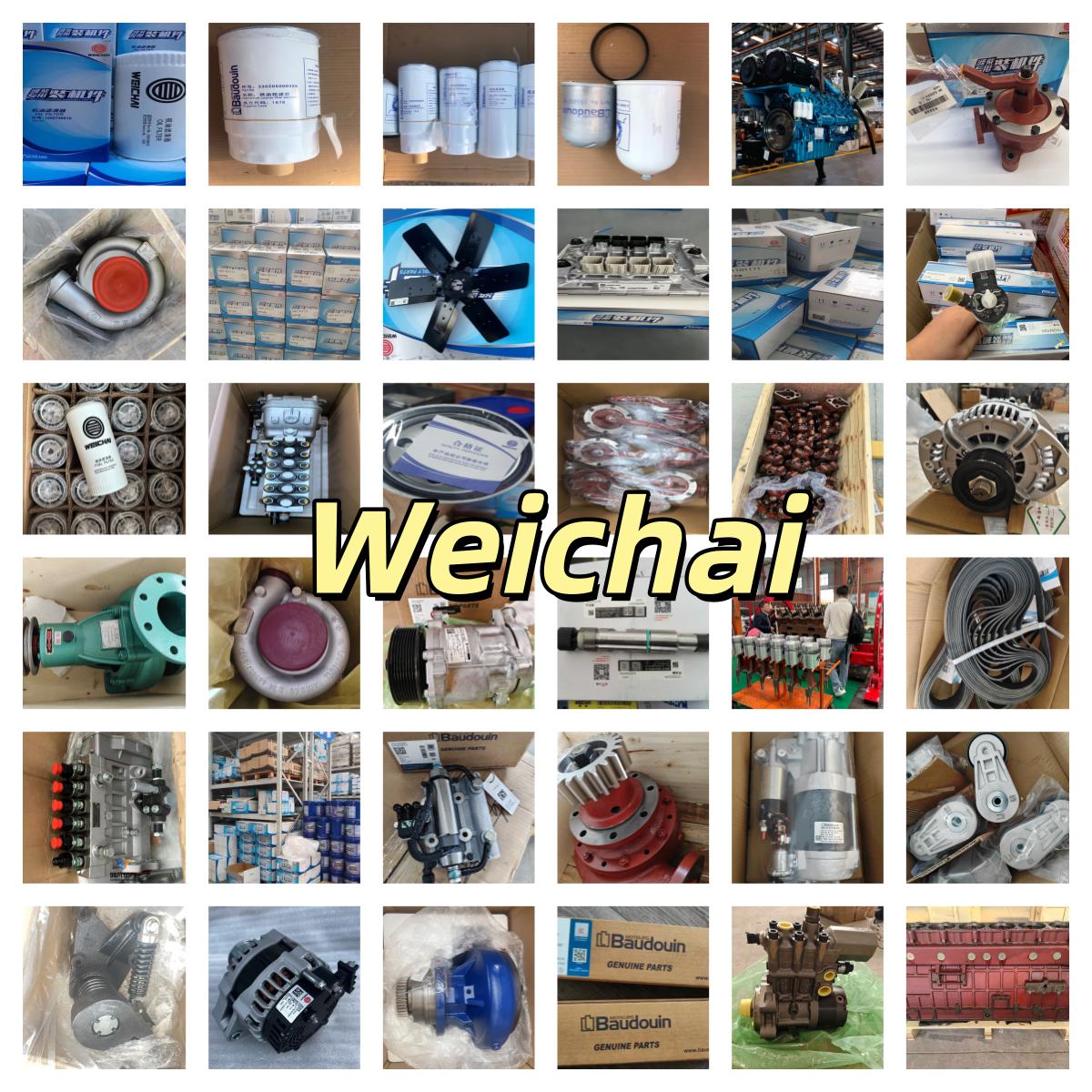

Weichai 8M33D945E201 Baudouin 945KW 1800r/min Diesel Generator and Parts
Weichai 8M33 Series Diesel Engine Overview
General Engine Specifications
| Item | Specification |
|---|---|
| Bore & Stroke (mm) | 150 x 185 |
| Displacement (L) | 26.1 |
| Number of Cylinders | 8 |
| Cylinder Arrangement | V-Type |
| Fuel System | High Pressure Common Rail / Mechanical |
| Governor | ECU / Electronic |
| Aspiration | Turbocharged & Air-to-Air Aftercooled |
Warranty Terms
PRP: 2 years, unlimited hours
ESP: 4 years / 800 hours
Cooling: 50°C cooling package standard with minimal derating
Extended MTBO: Longer Mean Time Between Overhaul
Diesel Engine Models & Output Ratings
| Model | Speed (RPM) | ESP Power (kWm) | PRP Power (kWm) | ESP Generator Output (kWe / kVA) | PRP Generator Output (kWe / kVA) | Aspiration | Governor | ECU |
|---|---|---|---|---|---|---|---|---|
| 8M33G800/6 | 1800 RPM | 800 | 730 | 720 kWe / 900 kVA | 640 kWe / 800 kVA | T/A-A | ELEC | Yes |
| 8M33G900/6 | 1800 RPM | 890 | 815 | 800 kWe / 1000 kVA | 720 kWe / 900 kVA | T/A-A | ELEC | Yes |
| 8M33G900/5 | 1500 RPM | 800 | 730 | 720 kWe / 900 kVA | 640 kWe / 800 kVA | T/A-A | ELEC | Yes |
| 8M33G1000/5 | 1500 RPM | 975 | 880 | 880 kWe / 1100 kVA | 800 kWe / 1000 kVA | T/A-A | ELEC | Yes |
| 8M33G1100/5 | 1500 RPM | 1012 | 910 | 909 kWe / 1136 kVA (approx.) | 826 kWe / 1033 kVA (approx.) | T/A-A | ELEC | Yes |
Legend:
ESP = Emergency Standby Power
PRP = Prime Rated Power
T/A-A = Turbocharged & Air-to-Air Aftercooled
ELEC = Electronic Governor
Standard Equipment
Engine Block
Cast iron frame-style body structure
One-piece forged crankshaft
Split-cap forged steel connecting rods
Separate cast iron cylinder heads with 4 valves per cylinder
Replaceable dry-type cylinder liners
Aluminum alloy pistons with oil cooling gallery
Cooling System
Thermostatically controlled with belt-driven coolant pump
Pusher fan
High water temperature sensor
Radiator and hoses supplied separately
Lubrication System
Flat-bottom large-capacity oil pan
Spin-on full-flow lube oil filter
Low oil pressure sensor
Fuel System
Mechanical Governor: P-type injection pump and high-pressure injector

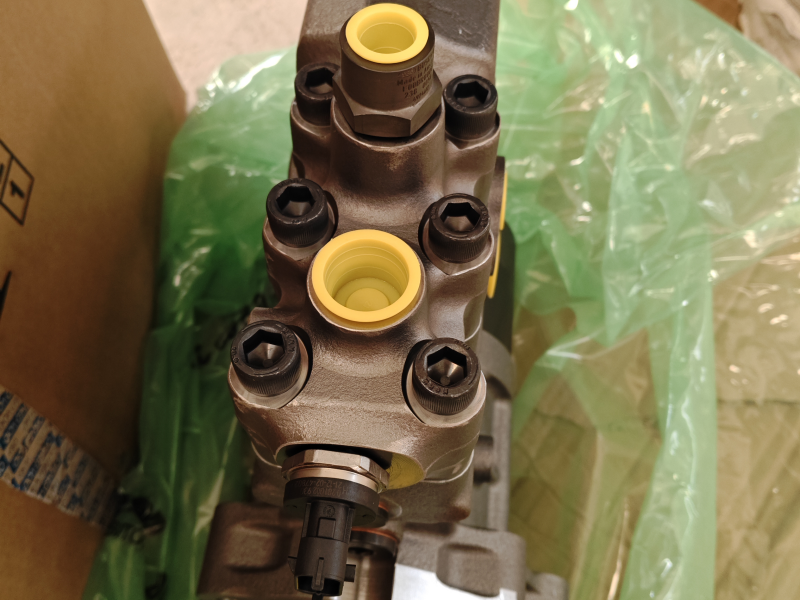

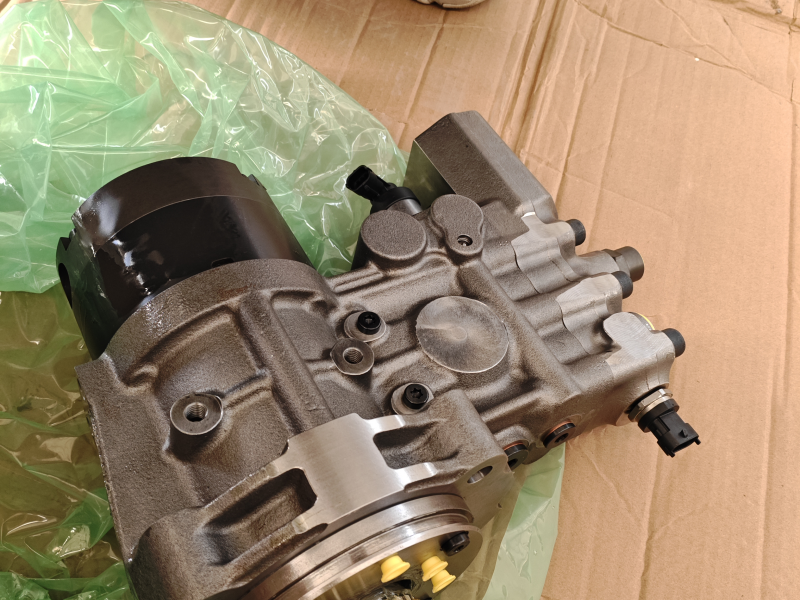

Electronic Governor: High Pressure Common Rail system with ECU
Duplex fine filter with water separator and transparent sediment cup
Air Intake & Exhaust System
Rear-mounted air filter with restriction indicator
Exhaust manifold heat shield
Electrical System
24 V DC electric starter motor
Battery charging alternator
Flywheel & Housing
SAE 1 flywheel housing
14" flywheel
