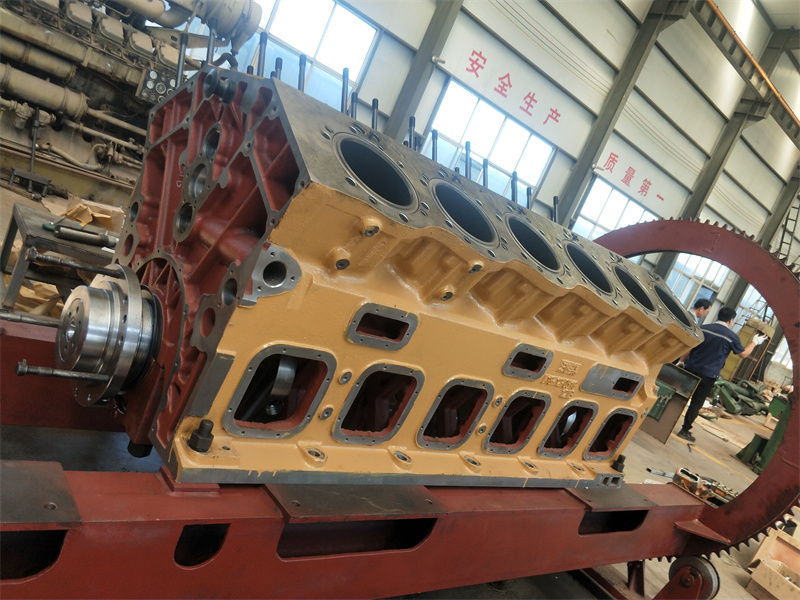

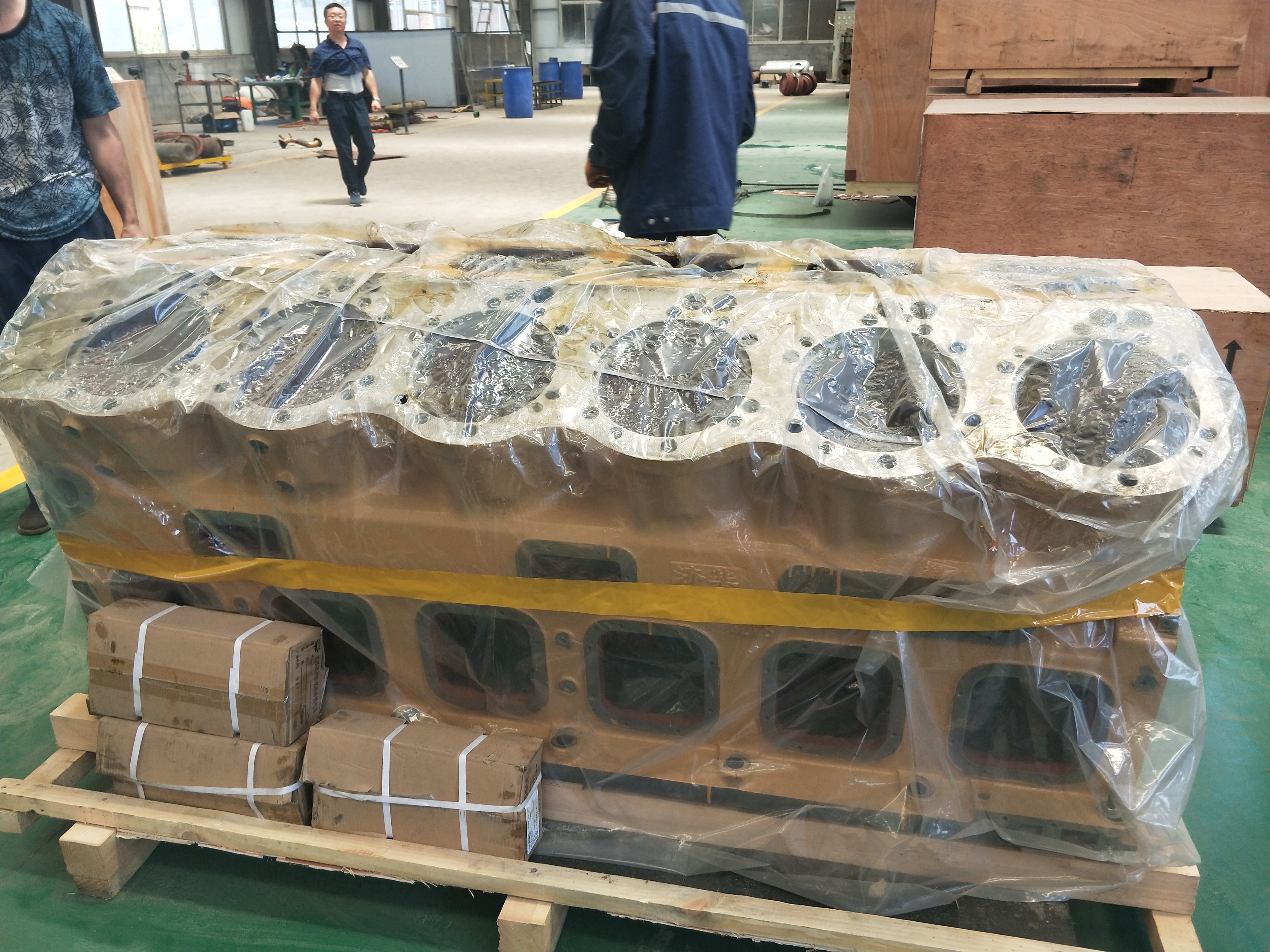

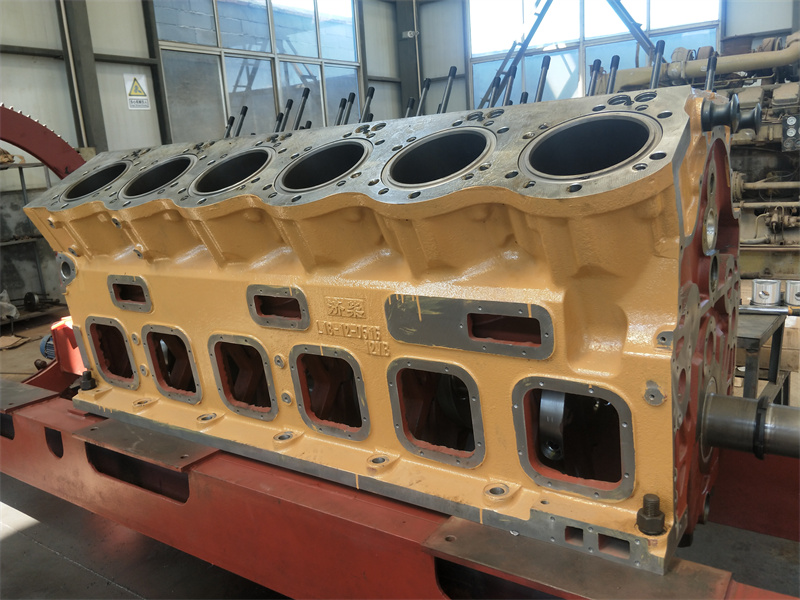

B3012.01.10A cylinder block of B12V190ZL diesel engine
Model NO.
B12V190ZL-1
Ignition Mode
Compression-Ignition
Speed
1200rpm
Cooling Cylinder
Water-Cooled
Intake Pressure Impulse
Turbocharged
Piston Movement
Reciprocating
Fuel
Diesel
Number of Strokes
Four-Stroke
Cylinder Arrangement Form
V
Number of Cylinders
12-Cylinder
Type
Combustion Engine
Model
B12V190zl-1
Rated Power (Kw/HP)
1060
Rated Speed (Rpm)
1200
Cylinder Bore (mm)
190
Piston Stroke (mm)
215
Displacement (L)
73.15
Fuel Consumption (G/Kwh)
Less Than 205
Oil Consumption (G/Kwh)
Less Than 1.0
Exhaust Temp Before Turbine (ºC)
Less Than 650
Water Temperature (ºC)
Less Than 90
Oil Temperature (ºC)
Less Than 95
Stable Rate (%)
Less Than 5
Cooling Method
Pressurized Water Cooling
Combustion Air Flow (Kg/S)
2.33
Exhaust Flow (M³/H)
18862
Transport Package
Wooden Box
Trademark
CHIDONG
Origin
China
HS Code
8408100000
Production Capacity
50000 Sets Per Year
Product Description

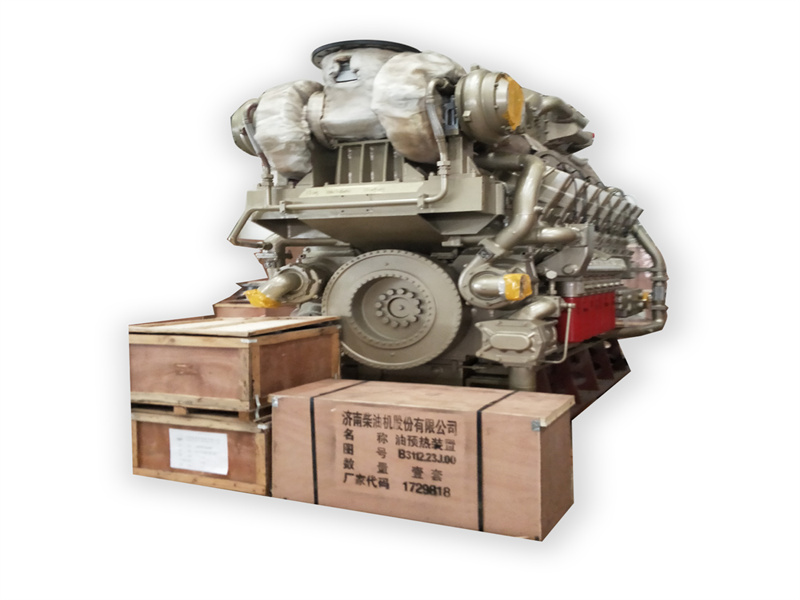

3000 diesel engine can satisfy the power requirements of the land mechanical or electric drilling engines with the drilling depth range of 4,000 to 7,000 meters. It can be installed on the same bedplate with the torque converter and coupling to serve as drilling engines or mud pump. A power plant can be established based on 3000 diesel engine integrated with single-bearing generator or double-bearing generator. Moreover, it can also supply as the power of fire-fighting pump and flood control pump. Compared with B3000 diesel engine, 3000 diesel engine has strong reliability and high level of automatic control for easy maintenance and operation, it can be a cost-effective choice for you.
| Diesel Engine Specification | |
| Model | B12V190ZL-1 |
| Rated power (kW) | 1060 |
| Rated speed (rpm) | 1200 |
| Standby power (kW) | 1160 |
| Type | Four-stroke, water cooling, exhaust gas turbocharged, inlet air inter cooling, direct injection combustion chamber |
| No. and layout of cylinders | 12-cylinder, V shape, 60° angle |
| Cylinder bore (mm) | 190 |
| Piston stroke (mm) | 215 |
| Displacement (L) | 73.15 |
| Fuel consumption (g/kWh) | ≤202 |
| Oil consumption (g/kWh) | ≤1.0 |
| Exhaust temp before turbine (ºC) | ≤650 |
| Water temperature (ºC) | ≤90 |
| Oil temperature (ºC) | ≤95 |
| Stable rate (%) | ≤5 |
| Cooling method | Pressurized water cooling |
| Combustion air flow (kg/s) | 2.33 |
| Exhaust flow (m³/h) | 18862 |
| Oil sump capacity (L) | 270 |
| High temperature water capacity (L) | 130 |
| Low temperature water capacity (L) | 40 |
| Start mode | Electric motor start |
| Lubricating | Press and spray lubrication |
| Steering | Anticlockwise (facing the output end) |
| Dimension (mm) | 2950×2280×2069 |
| Net weight (kg) | 9300 |
