H16V190ZLD-2 Diesel Generator Maintanence B4012C.12D.00 Injection pump assembly

H16V190 Diesel Generator Spare Parts Supplier

1 601.03.10.04A intake valve seat

2 601.03.10.05A exhaust valve seat

3 601.03.40 valve rotating mechanism subassy

4 601.03.10.03A valve guide

5 601.03.17A Spring seat,Upper

6 601.03.16A Split collet

7 B4012C.03.18 Valve spring

8 601.03.10.13 O-RING

9 601.03.10.12 O-RING

10 601.03.09A cover upper Seal ring

11 601.03.03 gasket

12 601.01.03 Cylinder head gasket

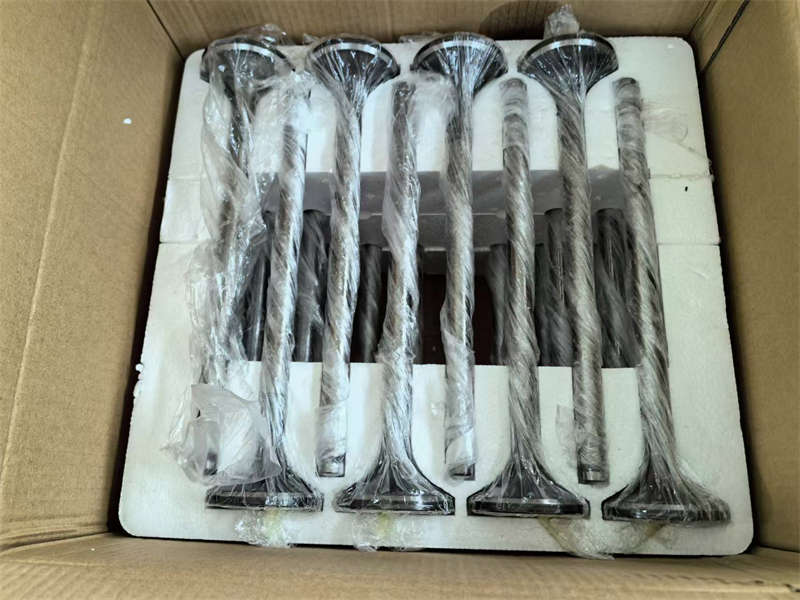

13 601.03.14A Exhaust valve

14 601.03.15A Inlet valve

15 601.16.10 nozzle couple subassembly

16 601.01.71 Adjusting gasket

17 601.01.72 Adjusting gasket

18 601.01.73 Adjusting gasket

19 601.01.74 Adjusting gasket

20 601.01.75 Adjusting gasket

21 601.01.07 Nut cylinder head

22 601.01.08 Stud washer,cylinder head

23 601.01.04 Stud,cylinder head

24 601.01.11 Seal ring

25 GB3452.1 O seal ring 95x3.55

26 601.01.13 Seal ring for cylinder head air inlet

27 601.03.30.02 Adjusting screw

28 601.03.20.30A Adjusting screw

29 12VB.03.60.01B Adjusting screw hat

30 601.03.05A Flange

31 601.03.01A Cylinder head connection

32 601.05.02A-GJ piston ring subassembly

33 601.05.20A OIL RING

34 601.05.03A Compression Ring

35 601.05.09A Compression Ring

36 601.05.02A Compression Ring

37 6016.09.17 Bolt

38 6016.09.16 Sleeve

39 6016.09.01A Gasket I

40 601.09.18 Gasket

41 6016CT.09.03A Gasket II

42 601.16.13A Adjusting gasket

43 601.16.14A Adjusting gasket

44 601.16.15A Adjusting gasket

45 601.16.16A Adjusting gasket

46 601.16.08 Gasket

47 601.16.12 O seal ring

48 601.16.11 O seal ring

49 601.16.09 O seal ring

50 GB5783 Bolt M8x30

51 GB93 Washer 8

52 6016.14.20.02 Nut

53 6016.14.30.01 Nut

54 GB3452.1 O seal ring 21.2x2.65

55 Q/JC14012 Screw 6

56 Q/JC14033 Washer M8

57 631.14.02 Gasket

58 631.14.04 Gasket

59 12VB.24.07 Gasket

60 601.24.08 Gasket

61 601.16.00 Injector assembly

62 601.05.30A Piston  assembly

63 6016.11.00 Fuel feed pump assembly

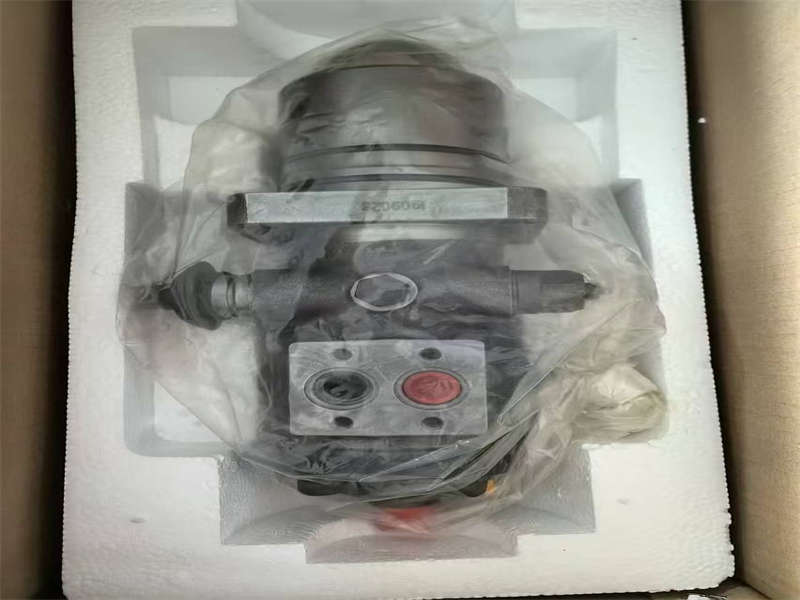

64 B4012C.12D.00 Injection pump assembly

65 601.12D.00 Injection pump assembly

66 6016.17.00 Oil pump assembly

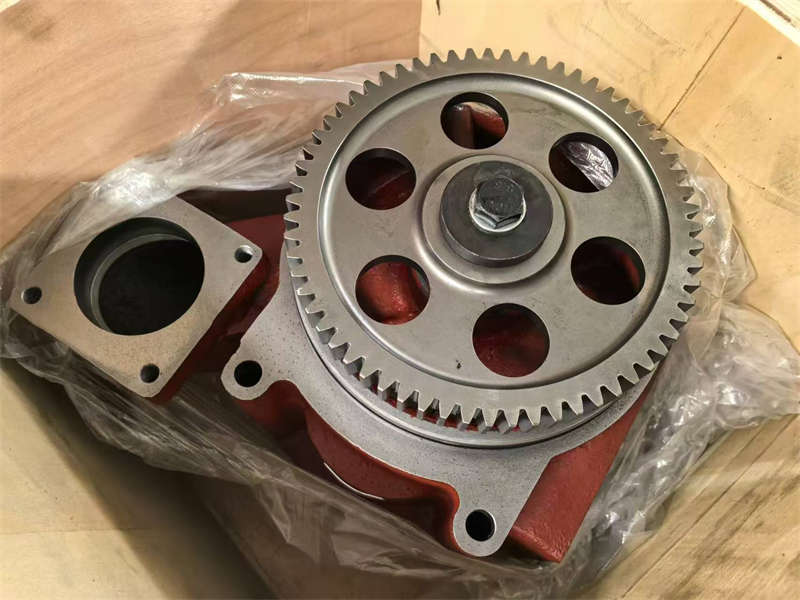

67 6016.22D.00 Water pump assembly

68 6016.22G.00 Water pump assembly

69 6016C.26.00 Turbo charger assembly（left）

70 6016C.26Y.00 Turbo charger assembly（right）

71 307.54.00 Pre-Supplyiing Oil Pump assembly

72 6016.46D.10A electric Start motor

73 601.01.50 Rear Oil Seal sub-assembly  end

74 GB3452.1 O seal ring 300x5.30

75 601.01.60 Front Oil Seal sub-assembly  front

76 601.01.40C Cooling oil nozzle subassembly

77 GB5782 Bolt M10x40

78 601.01.53 Washer

79 601.01.14 Seal ring cylinder liner rubber

80 601.01.15 Seal ring cylinder liner water

81 601.01.02 Cylinder liner

82 601.01.05 Stud,cylinder head(jack-uo)

83 601.01.06 Nut cylinder head(jack-up)

84 GB3452.1 O seal ring 85x3.55

85 GB3452.1 O seal ring 75x3.55

86 601.05.07/08 Connecting rod bearing,upper/lower

87 601.05.10.03 Connecting rod bolt

88 601.05.06 Piston pin
