Spare parts for the diesel engine model G12V190PZL1 (JDEC type)

Spare Parts List for Diesel Engine Model G12V190PZL1 (JDEC Type)

No.	Description	Part No. / Specification	Unit
1	Cardan Shaft W51/5×870 vv (with 8 holes, complete set)	108.12.111.04	set
2	Pneumatic Starter Motor (Air Starter)	12VB.46.120F	pcs
3	Spring for “JDEC” G12V190PZL1	Z12V.12.12.14A	pcs
4	Fuel Pump Governor for “JDEC” G12V190PZL1	T300/750Z	pcs
5	Water Pump Assembly	12VB.22.00B	set
6	Fuel Injection Pump	BH6Z140ZP	set
7	Fuel Injector with Nozzle Assembly	12VB.16.20E	set
8	Oil Filter for “JDEC” G12V190PZL1	12VB.18.10B	pcs
9	Fuel Filter for “JDEC” G12V190PZL1	12V.10.30.03	pcs
10	Air Filter (Upper)	12V.36M.40	pcs
11	Air Filter (Lower)	12V.36M.50	pcs
12	Turbocharger	J170-1 20GJ.00E	pcs
13	Cylinder Head Gasket (Sealing Ring II)	12VB.01.146	pcs
14	Plunger Pair Assembly (with Spring)	–	set
15	Drive Belt 15J-4-2190 mm (for JDEC G12V190PZL1)	HG/T-2819	pcs

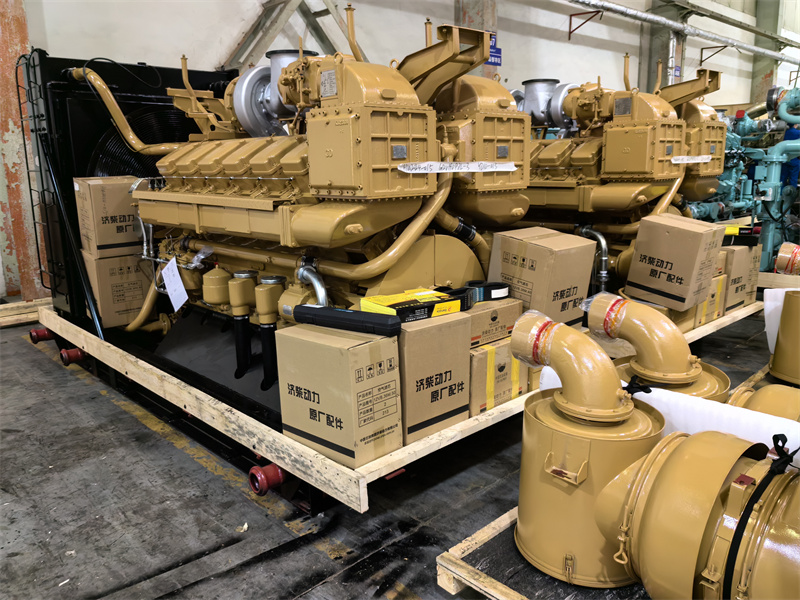

Engine Model: G12V190PZL1
Manufacturer Type: JDEC or equivalent
Engine Type: 12-cylinder, V-type, turbocharged, water-cooled diesel
Rated Power: 1000 kW @ 1500 rpm
Application: Diesel-driven generators and drilling equipment
Operating Conditions: –40 °C to +50 °C; suitable for high-dust and high-vibration environments
Standards: GB/T, ISO, or OEM equivalent standards
Compatibility: All parts must be fully interchangeable with the original JDEC G12V190PZL1 engine design

G12V190PZL1

Product Offerings

Jinan Diesel Engine: Jichai 190 series, 6190, 8190, 12V190, 16V190 diesel and gas engine.

Shengdong Gas Generator: 500kW, 700kW gas generators.

Weichai Engines: 6170Z, 8170Z, CW6200, CW8200, R6160Z, WP12, and WP series.

Weichai Baudouin Series: 6M26, 6M33, 12M26, 12M33, 16M33, 12M55, M26, M33, M55 Series.

Zichai Engines: Z6170, Z8170, 6210, 8210, LB8250, LC8250, ZC6200, Z6180, Z8180, Z6150, 6300, 8300.

Generator Sets: (20-2000KW) from leading domestic brands such as Jichai, Shengdong, Zichai, and Yuchai.
