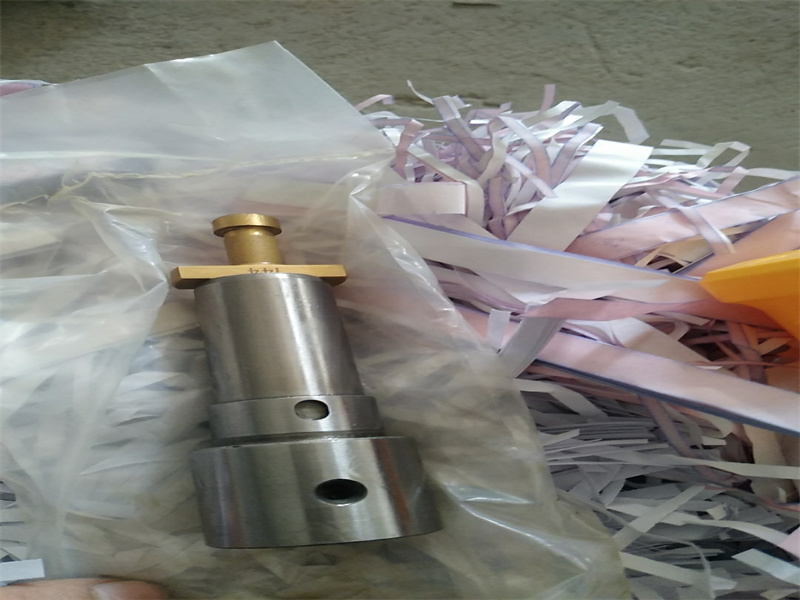

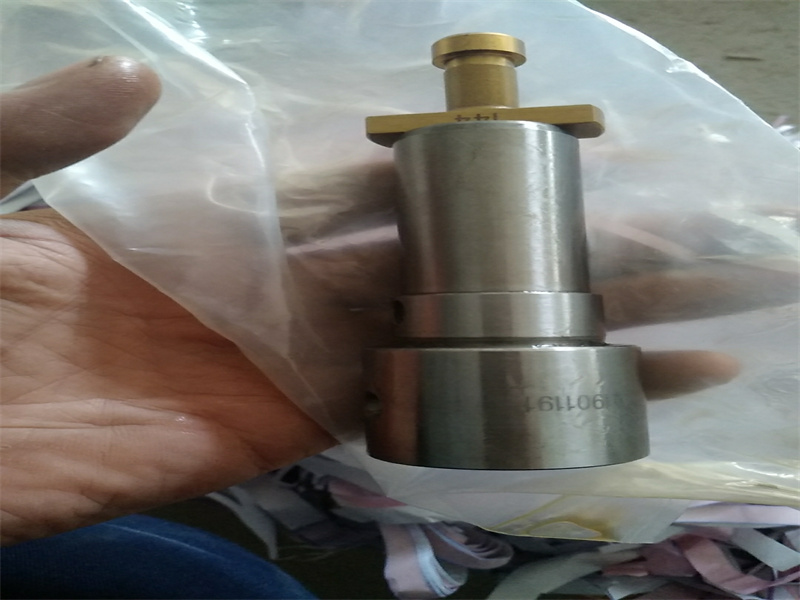

Plunger pair G12V190PZL Jichai Jinan Diesel Engine Drilling Diesel engine Parts
Technical Specifications

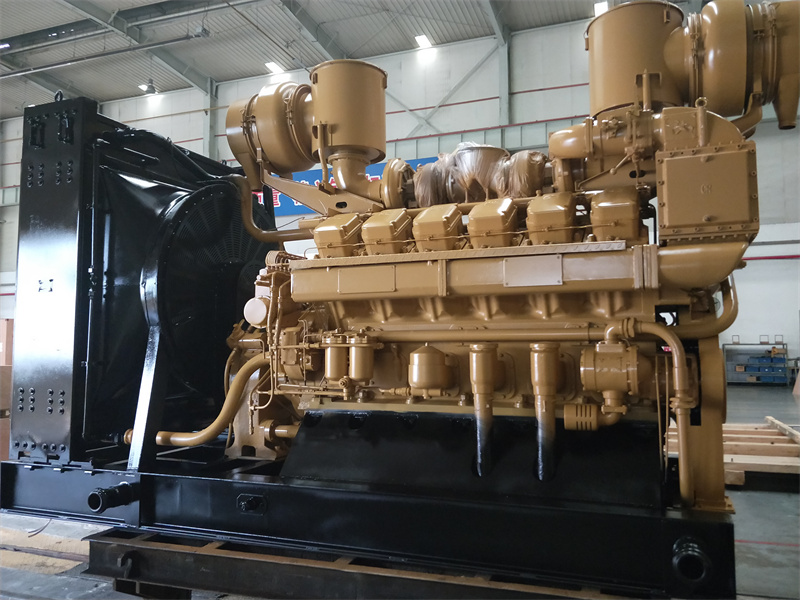

1. Drilling Diesel Engine – G12V190PZL1
Item | Specification |
|---|---|
Name | Drilling Diesel Engine |
Model | G12V190PZL1 |
Manufacturer | Jichai (CNPC Jichai Power) |
Customer Requirement No. | 14 |
Quantity | 8 sets |
Base Engine | G12V190PZL1 |
Engine Type | Four-stroke, V12 (60°), turbocharged, intercooled |
Rated Power | 1,000 kW |
Rated Speed | 1,500 rpm |
Bore × Stroke | 190 × 210 mm |
Displacement | 71.45 L |
Fuel Consumption Rate | ≤ 209.4 g/kWh |
Lubricating Oil Consumption Rate | ≤ 1.6 g/kWh |
Starting System | Pneumatic starter motor |
Cooling System | Radiator with engine-driven fan |
Fuel | Diesel |
Configuration | Diesel engine unit for drilling rig drive |
Output Shaft / Connection | According to G12V190PZL1 standard configuration |
Overall Dimensions (L × W × H) | 4,301 × 1,980 × 2,678 mm |
Weight | 8,100 kg |
Ambient Temperature | −30°C to +50°C |
Installation Location | Outdoor drilling rig |
Application | Driving drawworks and drilling pumps |
Engine Control Panel with Instruments and Protection | Included |
Air, Fuel and Lubricating Oil Filters | Included |
Exhaust Silencer with Spark Arrestor | Included |
Spare Parts for Two Years of Operation | Included (with part number list) |
Special Tools | Included |
Installation Guidance | Available; quoted separately |
Certificate of Conformity (Product Passport) and Operation Manual | Russian / English |
Spare Parts Catalogue | Included |
Factory Test Report | Included |
Certificate of Origin | Included |
General Arrangement Drawing with Connection Dimensions | Included |
Warranty Period | At least 12 months from commissioning |
2. Diesel Engine, Fluid Coupling and Gearbox Unit – CO1000F/30
Item | Specification |
|---|---|
Name | Diesel Engine, Fluid Coupling and Gearbox Unit |
Model | CO1000F/30 |
Manufacturer | Jichai (CNPC Jichai Power) |
Customer Requirement No. | 15 |
Quantity | 4 units |
Base Engine | G12V190PZL |
Engine Type | Four-stroke, V12 (60°), turbocharged, intercooled |
Rated Power | According to CO1000F/30 standard configuration |
Rated Speed | According to CO1000F/30 standard configuration |
Bore × Stroke | 190 × 210 mm |
Displacement | 71.45 L |
Fuel Consumption Rate | ≤ 209.4 g/kWh |
Lubricating Oil Consumption Rate | ≤ 1.6 g/kWh |
Starting System | Pneumatic starter motor |
Cooling System | Radiator with engine-driven fan |
Fuel | Diesel |
Configuration | Diesel engine + fluid coupling + gearbox, mounted on a common base frame |
Output Shaft / Connection | According to CO1000F/30 standard configuration |
Overall Dimensions (L × W × H) | According to CO1000F/30 standard configuration |
Weight | According to CO1000F/30 standard configuration |
Ambient Temperature | −30°C to +50°C |
Installation Location | Outdoor drilling rig |
Application | Driving drawworks and drilling pumps |
Engine Control Panel with Instruments and Protection | Included |
Air, Fuel and Lubricating Oil Filters | Included |
Exhaust Silencer with Spark Arrestor | Included |
Spare Parts for Two Years of Operation | Included (with part number list) |
Special Tools | Included |
Installation Guidance | Not specified |
Certificate of Conformity (Product Passport) and Operation Manual | Russian / English |
Spare Parts Catalogue | Included |
Factory Test Report | Included |
Certificate of Origin | Included |
General Arrangement Drawing with Connection Dimensions | Included |
Warranty Period | At least 12 months from commissioning |
