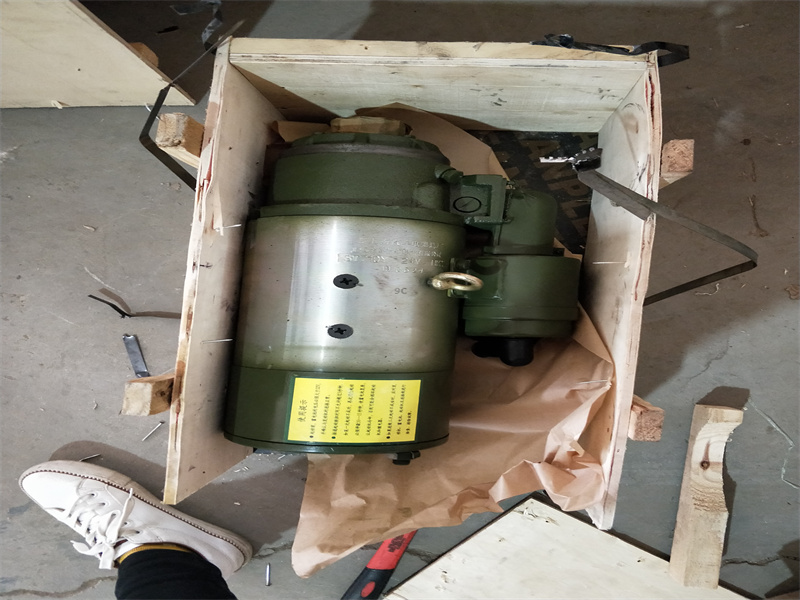

CHIDONG A12V190PZL-3 1100KW 1300RPM diesel engine parts pneumatic starter motor

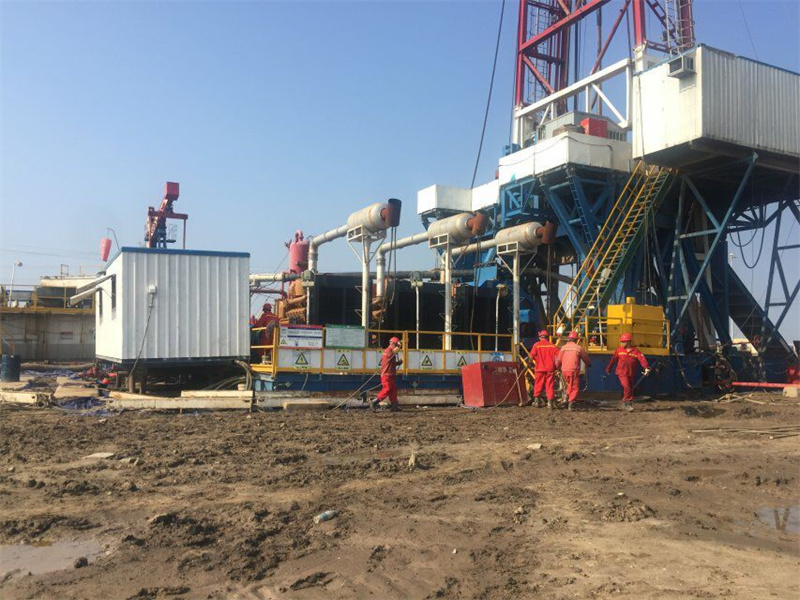

A12V190PZL chidong brand is a diesel engine unit widely used in oil filed for drilling. It usually coupled with hydraulic coupling to consitiute diesel engine unit such as co1200/20, co1300F-3/25. As a kind of engine with high power, fast speed, it is suitable for the harsh environment of drilling.

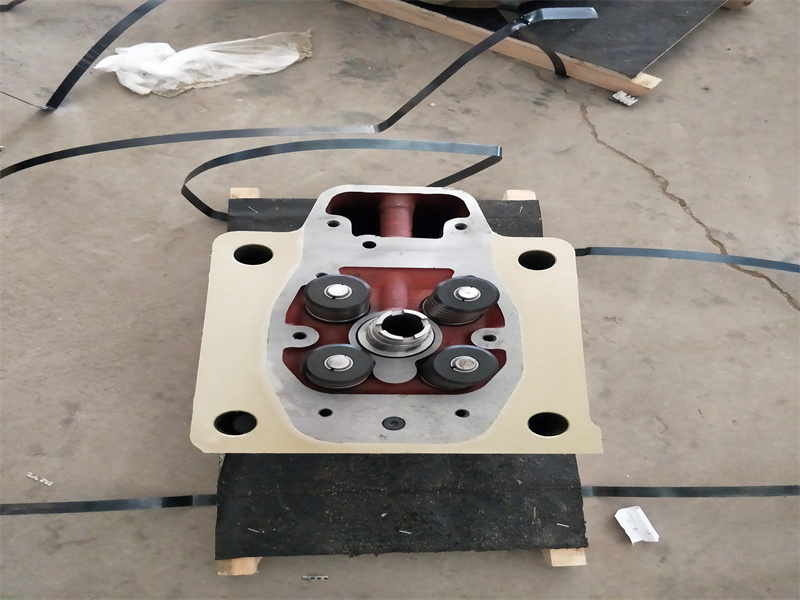

We can supply spare parts for A12V190PZL, including motor, turbocharger, oil pump and piston ring, welcome to contact us!
| Model | Rated Power（KW/hp) | Rated Speed（r/min) | Specific fuel consumption（g/kw.h) | Specific oil consumption（g/kw.h) | Overall Dimension L＊B＊H（mm) | Net weigh（KG） | |
| A12V190ZL | 1200/1500 | 1080/1500 | ≤205 | ≤1.0 | 2950＊1980＊2206 | 9300 | |
| A12V190PZL | 1200/1500 | 1080/1500 | ≤205 | ≤1.0 | 3980＊2250＊2739 | 11000 | |
| A12V190ZL-3 | 1100/1300 | 990/1300 | ≤205 | ≤1.0 | 2950＊1980＊2206 | 9300 | |
| A12V190PZL-3 | 1100/1300 | 990/1300 | ≤205 | ≤1.0 | 3980＊2250＊2739 | 11000 | |
| A12V190ZL-1 | 1000/1200 | 900/1200 | ≤205 | ≤1.0 | 2950＊1980＊2206 | 9300 | |
| A12V190PZL-1 | 1000/1200 | 900/1200 | ≤205 | ≤1.0 | 3980＊2250＊2739 | 11000 | |
| A12V190ZL-2 | 900/1000 | 810/1000 | ≤205 | ≤1.0 | 2950＊1980＊2206 | 9300 | |
| A12V190PZL-2 | 900/1000 | 810/1000 | ≤205 | ≤1.0 | 3980＊2250＊2739 | 11000 | |
| A8V190ZL | 900/1500 | 810/1500 | ≤205 | ≤1.4 | 2300＊1774＊2173 | 7200 | |
| A8V190PZL | 900/1500 | 810/1500 | ≤205 | ≤1.4 | 3380*2250*2738 | 9100 | |
| A8V190ZL-3 | 760/1300 | 684/1300 | ≤205 | ≤1.4 | 2300＊1774＊2173 | 7200 | |
| A8V190PZL-3 | 760/1300 | 684/1300 | ≤205 | ≤1.4 | 3380*2250*2738 | 9100 | |
| A8V190ZL-1 | 700/1200 | 630/1200 | ≤205 | ≤1.4 | 2300＊1774＊2173 | 720 | |
| A8V190PZL-1 | 700/1200 | 630/1200 | ≤205 | ≤1.4 | 3380*2250*2738 | 9100 | |
| A8V190ZL-2 | 600/1000 | 540/1000 | ≤205 | ≤1.4 | 2300＊1774＊2173 | 720 | |
| A8V190PZL-2 | 600/1000 | 540/1000 | ≤205 | ≤1.4 | 3380*2250*2738 | 9100 | |
