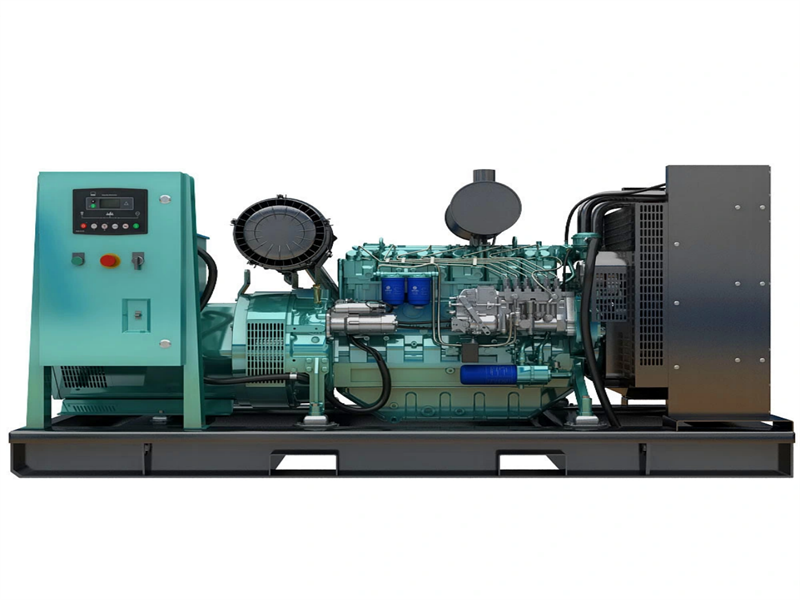

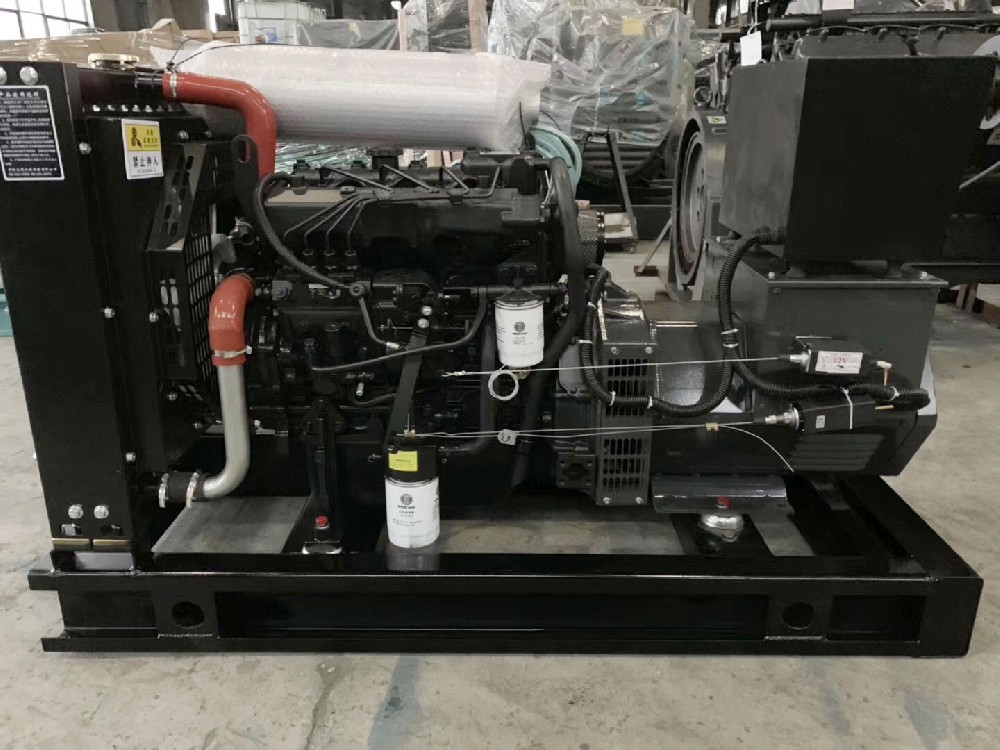

40KW Diesel Generator for Factory or Farm Electricity Production

40kW (50kVA) Weichai Diesel Generator Set Technical Data

Model: HF-40 | Engine Model: WP2.3D48E200

Generator Set Parameters

Manufacturer:Shandong Hongfan Power Technology Co., Ltd. Generator Set Model:HF-40

Rated Power:40 kW

Rated Capacity:50 kVA Rated Current:72 A

Rated Voltage:220V/380V or 230V/400V (Custom voltages available)

Rated Frequency:50 Hz

Rated Speed:1500 rpm

Power Factor:0.8 (Lagging)

Speed Control Mode:Mechanical governor

Dimensions (L × W × H):1700 × 720 × 1150 mm Weight:700 kg

Engine Parameters

Engine Brand:Weichai Power / Weichai Power Co., Ltd. Engine Model:WP2.3D48E200

Engine Power:48 kW

Cylinder Configuration:4-cylinder, inline (L), 4-stroke Bore × Stroke:89 mm × 92 mm

Aspiration:Turbocharged

Speed Control Mode:Mechanical governor Rated Speed:1500 rpm

Fuel Consumption Rate:≤ 205 g/kW·h Displacement:2.289 L

Cooling Method:Forced water cooling

Speed Stability:≤ 5%

Starting System:DC 12V

Alternator (Generator) Parameters

Alternator Brand:Shanghai Duning Alternator Model:DN-40

Rated Power:40 kW

Rated Voltage:400V/230V or 220V/380V

Rated Current:72 A

Rated Frequency:50 Hz

Rated Speed:1500 rpm

Excitation Method:Brushless self-excitation

Voltage Regulation Range:≥ 5%

Voltage Fluctuation Range:≤ ±5% Insulation Class:H

Protection Grade:IP21

Delivery period: 10-20 days.
