jinan engine 500GF-NK 500KW biogas generator factory

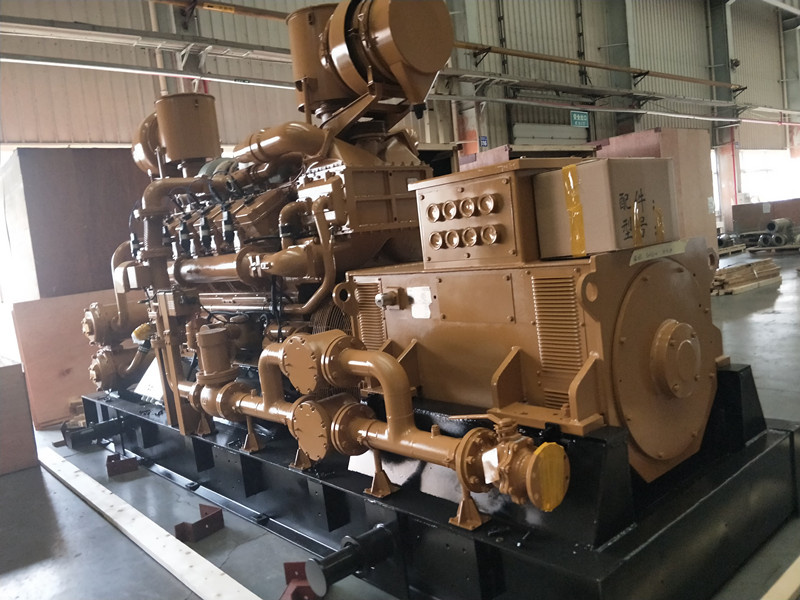

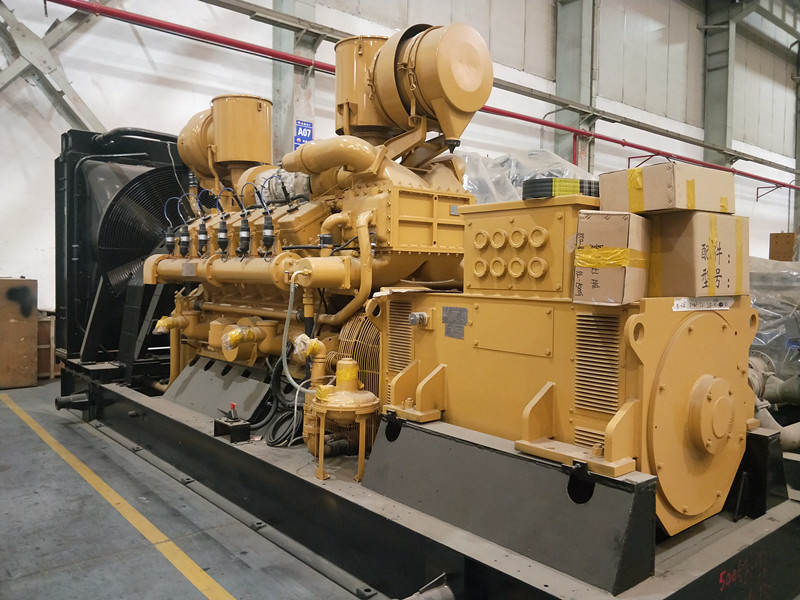

The 500KW Biogas Generator is an innovative and eco-friendly power generation system equipped with the G12V190ZLDZ-2 gas engine produced by Jinan Diesel Engine Company, Ltd and Simens generator.
Key Features of the 500KW Biogas Generator Set
Engine Model: G12V190ZLDZ-2
Power Output: 500KW / 625KVA
Alternator: Siemens 1FC6 456-6LA42, produced under Siemens technology license
Control Panel: Advanced GPL-500 system
Starting Method: 24V DC electric start
Cooling Mode: Half-open type water cooling system
Efficiency: Heat consumption ≤ 10MJ/kW·h
Why Choose Biogas for Energy Generation?
Biogas is a clean and renewable fuel primarily composed of methane (CH4, 55%-65%) and carbon dioxide (CO2, 30%-40%). When burned, biogas emits only CO2 and H2O, making it a sustainable alternative to traditional fossil fuels. Its combustion process produces significantly fewer pollutants, aligning with global efforts to reduce carbon emissions.
Technical Specifications of the 500KW Biogas Generator Set
Generator Set Overview
| Specification | Details |
|---|---|
| Model | 500GF-NK |
| Rated Power | 500KW / 625KVA |
| Voltage | 400/230 V |
| Frequency | 50Hz |
| Speed | 1000rpm |
| Net Weight | 12,500kg |
| Dimensions | 5120×2040×2780mm |
| Power Factor | 0.8 (Lagging) |
| Overhaul Period | ≥35,000 hours |
Biogas Engine Specifications
| Engine Feature | Details |
|---|---|
| Manufacturer | Jinan Diesel Engine Co., Ltd |
| Type | Four-stroke, water-cooled, spark ignition |
| Cylinder Configuration | 12-cylinder V-type, 60° angle |
| Bore x Stroke | 190×210mm |
| Total Displacement | 71.5L |
| Rated Speed | 1000rpm |
| Idle Speed | 700rpm |
| Gas Pressure Requirement | 3-7 KPa |
| Lubrication Oil Consumption | ≤1.0g/kW·h |
| Exhaust Temperature | ≤650°C |
| Noise Level | ≤115dB |
| Cooling Method | Forced water cooling |
Alternator Specifications
| Specification | Details |
|---|---|
| Type | Siemens series, brushless |
| Rated Capacity | 500KW / 625KVA |
| Insulation Class | F |
| Voltage | 400V |
| Frequency | 50Hz |
| Defending Class | IP23 |
| Cooling Method | Air-cooled |
| Voltage Regulation | Automatic via AVR system |
Safety and Protection Features
The 500KW biogas generator set is equipped with advanced safety mechanisms to ensure reliable and secure operation:
Voltage and Frequency Monitoring: Alarms for over/under-voltage and frequency deviations.
Overload Protection: Automatic alarms and circuit breaks in case of excess load.
Cooling and Lubrication Systems: High-temperature alarms for both cooling water (90°C) and lubrication oil (95°C).
Over-Speed Protection: Alarms and automatic shutdown at speeds exceeding 112%.
Explosion Prevention: Equipped with crankcase and air inlet safety systems.
Gas Leak Detection: Includes protection against gas leaks for enhanced safety.
