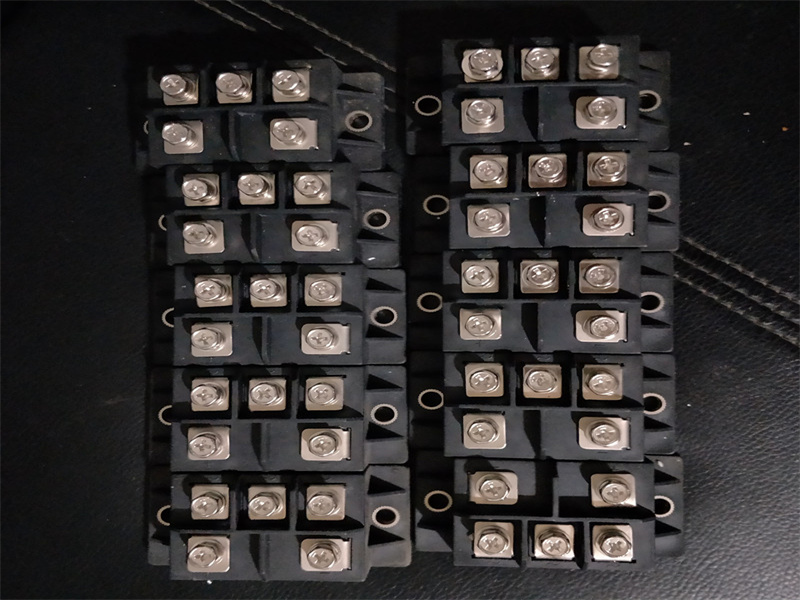

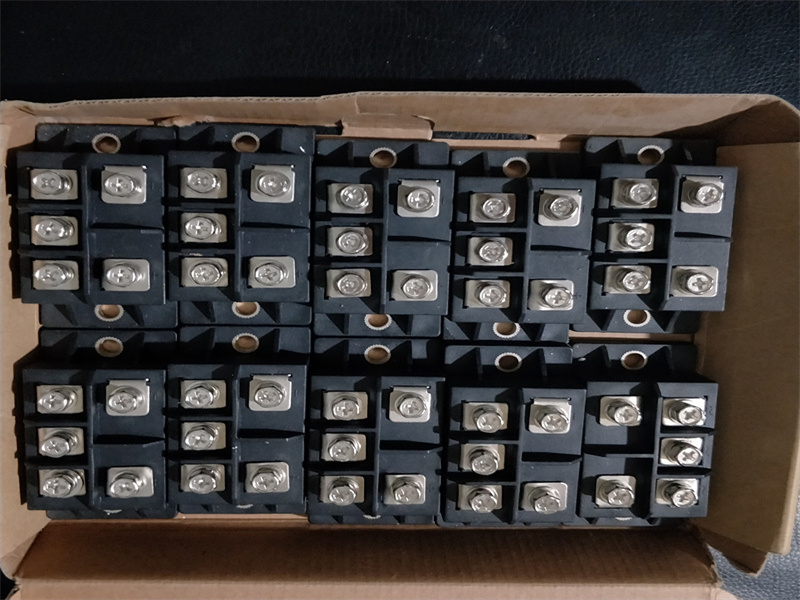

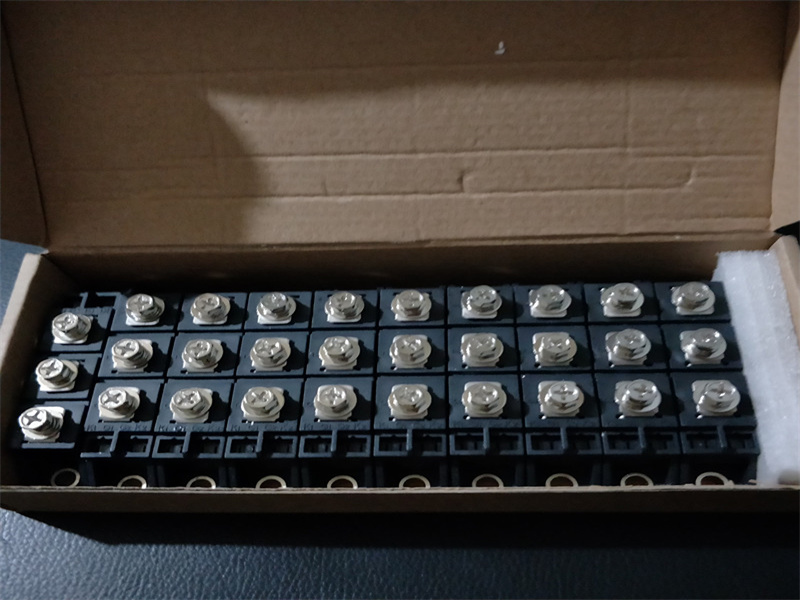

Rotating rectifier module ZXQ100-12 KZQ55-12 used in Jichai 500KW gas generator 500GF-NK
G12V190ZDT PARTS LIST REQUEST
| No. | Name | Model |
|---|---|---|
| 1 | Camshaft insert | 12VB.01.34 |
| 2 | Cylinder liner sealing ring | 12V.01.14 |
| 3 | Cylinder liner sealing ring | 12VB.01.136 |
| 4 | Cylinder liner sealing ring | 12VB.01.134 |
| 5 | Cylinder liner | 12V.01.02C |
| 6 | Round nut | 12V.02.28 |
| 7 | Locking gasket | 12V.02.27 |
| 8 | Threaded oil-retaining ring | 12V.02.26A |
| 9 | Pin | GB/T119.2 4×16 |
| 10 | Oil stop plate | 12V.02.24 |
| 11 | Rocker arm projection | 12VB.03.10.07 |
| 12 | Rocker arm seat bolt | 12VB.03.90B |
| 13 | Washer | GB93 |
| 14 | Nut | Q/JC11013 |
| 15 | Short bolt | 12VB.03.04 |
| 16 | Valve rocker arm | 12VB.03.10.05.00 |
| 17 | Gasket | 12VB.03.51 |
| 18 | Gasket | 127.03.06 |
| 19 | Gasket | 127.03.03 |
| 20 | Spark plug boot | 127.03.80.02B |
| 21 | Cylinder head | 127.03.80.01C |
| 22 | Screws | 12VB.03.53B |
| 23 | Intake valve seat | 127.03.80.04 |
| 24 | Intake valve | 12VB.03.37C |
| 25 | Exhaust valve | 12VB.03.22C |
| 26 | Exhaust valve seat | 127.03.80.03A |
| 27 | Concave part of cross lever | 12VB.03.30B |
| 28 | Nut | M14×1 |
| 29 | Adjusting screw | 12VB.03.60B |
| 30 | Rocker bridge | 12VB.03.03B |
| 31 | Adjusting screw | 12VB.03.90B |
| 32 | Fork | 12VB.03.70.00 |
| 33 | Valve guide bushing | 12VB.03.80.02 |
| 34 | Lower cover gasket | 12VB.03.12A |
| 35 | Upper cover gasket | 12VB.03.11 |
| 36 | Spark plug cap | 1812T.03.05 |
| 37 | Valve stem seal | 127.03.80.06 |
| 38 | Valve yarn | 601.03.16A |
| 39 | Rotating mechanism | 127.03.30A |
| 40 | Gasket | 223.04.05 |
| 41 | Piston ring | 12VB.05.09C-GJ |
| 42 | Piston | 1512CT.05.01 |
| 43 | Piston pin | 12V.05.08A |
| 44 | Retaining ring | 12V.05.14 |
| 45 | Connecting rod bolts | 12VB.05.10.03 |
| 46 | Washer | 12VB.05.10.06 |
| 47 | Connecting rod nut | 12VB.05.10.09 |
| 48 | Small end bushing | 12VB.05.10.08 |
| 49 | Connecting rod bearing | 12VB.05.10.04/05 |
