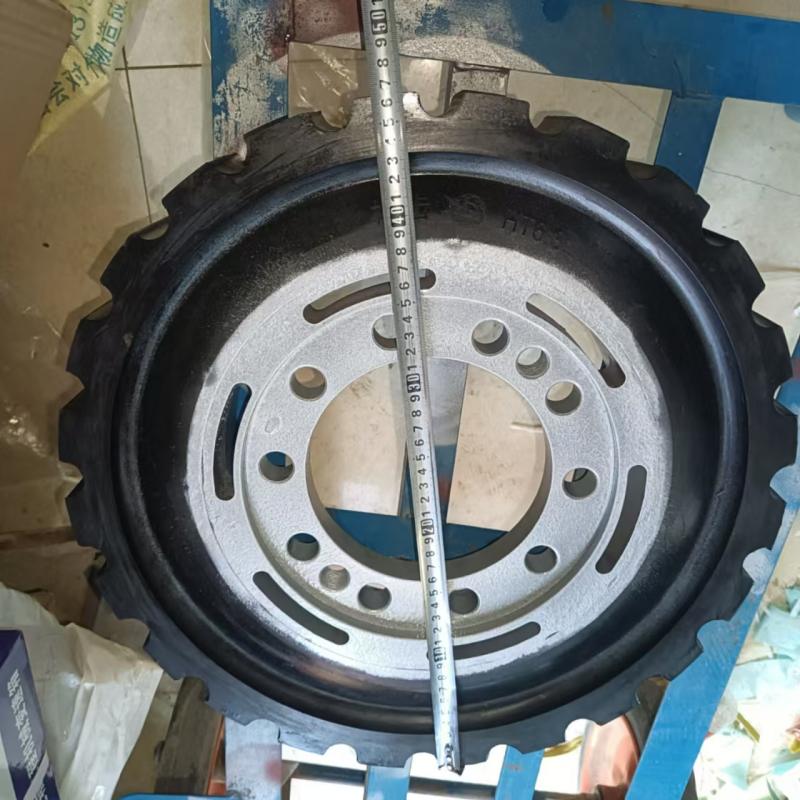

coupling high elastic rubber used for G12V190ZLC PZ12V190B G12V190PZL diesel engine
Jichai 2000 Series Marine Diesel Engine Model list
| Model | Power (kW/hp) | Speed (rpm) | Fuel (g/kW·h) | Oil (g/kW·h) | Size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| Z12V190BC1 | 800/1080 | 1500 | ≤209.4 | ≤1.6 | 2642×1588×2070 | 5300 |
| Z12V190BC2 | 882/1200 | 1500 | ≤209.4 | ≤1.6 | 2642×1588×2070 | 5300 |
| Z12V190BC8 | 1000/1360 | 1500 | ≤209.4 | ≤1.6 | 2642×1588×2070 | 5300 |
| Z12V190BC9 | 882/1200 | 1500 | ≤209.4 | ≤1.6 | 2642×1588×2070 | 5300 |
| Z12V190BC10 | 900/1225 | 1450 | ≤209.4 | ≤1.6 | 2642×1588×2070 | 5300 |
| Z12V190BC11 | 882/1200 | 1500 | ≤209.4 | ≤1.6 | 2642×1588×2070 | 5300 |
| G12V190ZLC1 | 1000/1360 | 1450 | ≤209.4 | ≤1.6 | 2642×1588×2070 | 5300 |
| G12V190ZLC2 | 1000/1360 | 1450 | ≤209.4 | ≤1.6 | 2642×1588×2070 | 5300 |
Main Technical Data
Cylinders: 12, 60° V
Type: 4-stroke, water-cooled
Aspiration: Turbocharged & aftercooled
Injection: Direct injection
Bore/Stroke: 190 / 210 mm
Displacement: 71.45 L
Compression Ratio: 14:1
Rotation: CCW (no “R”), CW (with “R”), facing flywheel
Start: Air or electric
Lubrication: Pressure & splash
Generator Set Specifications (Compact Format)
| Genset Model | Engine | Generator | kW | V | Hz | Size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| CCFJ400/1000 | Z12V190BCD-2 | TFC5454-6JH42 | 400 | 390 | 50 | 4210×1500×2260 | 10500 |
| CCFJ630/1500 | Z12V190BCD | TFC5456-4JH42 | 630 | 390 | 50 | 4260×1500×2260 | 12000 |
Product Offerings
Jinan Diesel Engine: Jichai 190 series, 6190, 8190, 12V190, 16V190 diesel and gas engine.
Shengdong Gas Generator: 500kW, 700kW gas generators.
Weichai Engines: 6170Z, 8170Z, CW6200, CW8200, R6160Z, WP12, and WP series.
Weichai Baudouin Series: 6M26, 6M33, 12M26, 12M33, 16M33, 12M55, M26, M33, M55 Series.
Zichai Engines: Z6170, Z8170, 6210, 8210, LB8250, LC8250, ZC6200, Z6180, Z8180, Z6150, 6300, 8300.
Generator Sets: (20-2000KW) from leading domestic brands such as Jichai, Shengdong, Zichai, and Yuchai.
Commitment to Excellence
Shandong Hongfan Power Technology Co., Ltd. is committed to delivering high-quality products and reliable services with integrity and innovation. The company has earned widespread acclaim and loyalty from customers through continuous improvement and exceptional service.
