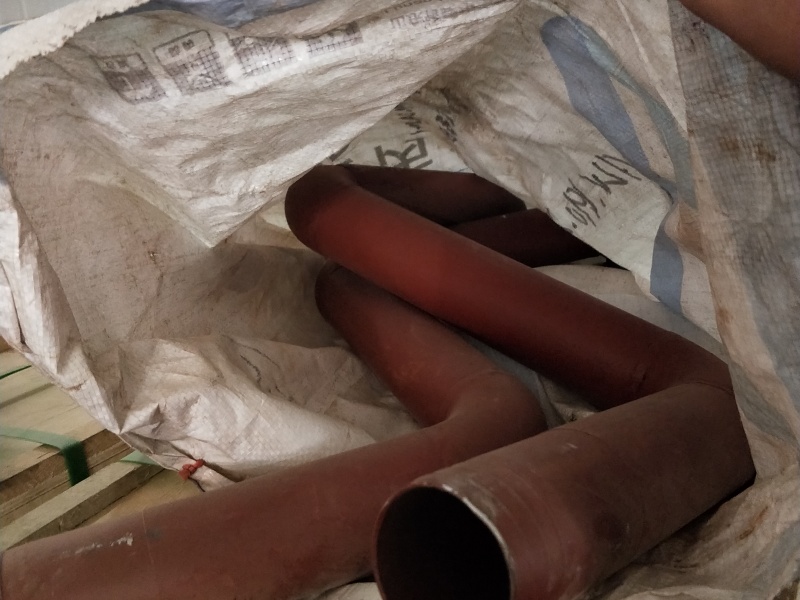

turbocharger inlet oil pipe for C8190ZLC 518KW diesel engine

C190 Series Marine Diesel Engine Overview

The C190 series marine main engine diesel engines are known for their compact structure, high power, and easy operation and maintenance. These engines provide excellent power performance, fuel economy, and reliability.

Both inline 6-cylinder and inline 8-cylinder models are available, with options for left-hand rotation with right-hand engine and right-hand rotation with left-hand engine, offering maximum compatibility and interchangeability with other engine series.

These engines are widely applicable in fishing vessels, port service ships, logistics support vessels, transportation boats, and various types of cargo ships. They are capable of meeting multi-engine, multi-propeller power needs.

Rated Power: 400 kW – 806 kW
Rated Speed: 1000 r/min – 1450 r/min

Model	Rated Power (kW)	Rated Speed (r/min)	Bore×Stroke (mm)	Cylinder Arrangement	Fuel Consumption (g/kW·h)	Dimensions (L×W×H) mm	Net Weight (kg)
C6190ZLCA / AC6190ZLCA	605	1450	190×230	6 cyl, inline	≤205	2995×1133×1754	4500
C6190ZLCZ / C6190ZLCZ-R / AC6190ZLCZ-R	550	1350	190×230	6 cyl, inline	≤205	2995×1133×1754	4500
C6190ZLC2 / AC6190ZLC2	550	1350	190×230	6 cyl, inline	≤205	2995×1133×1754	4500
C6190ZLCZ-3 / -3R / AC6190ZLCZ-3R	530	1300	190×230	6 cyl, inline	≤205	2995×1133×1754	4500
C6190ZLC2-3 / AC6190ZLC2-3	530	1300	190×230	6 cyl, inline	≤205	2995×1133×1754	4500
C6190ZLCZ1-3	450	1300	190×230	6 cyl, inline	≤205	2995×1133×1754	4500
C6190ZLCZ-1 / -1R / AC6190ZLCZ-1R	490	1200	190×230	6 cyl, inline	≤205	2995×1133×1754	4500
C6190ZLC2-1 / AC6190ZLC2-1	490	1200	190×230	6 cyl, inline	≤205	2995×1133×1754	4500
C6190ZLCZ-2 / -2R / AC6190ZLCZ-2R	400	1000	190×230	6 cyl, inline	≤205	2995×1133×1754	4500
C6190ZLC2-2 / AC6190ZLC2-2	400	1000	190×230	6 cyl, inline	≤205	2995×1133×1754	4500
C8190ZLCA / AC8190ZLCA	806	1450	190×230	8 cyl, inline	≤205	3175×1208×2055	5000
C8190ZLC / AC8190ZLC	735	1350	190×230	8 cyl, inline	≤205	3175×1208×2055	5000
C8190ZLCZ-R / AC8190ZLCZ-R	735	1350	190×230	8 cyl, inline	≤205	3175×1208×2055	5000
C8190ZLC-3 / AC8190ZLC-3	700	1300	190×230	8 cyl, inline	≤205	3175×1208×2055	5000
C8190ZLCZ-3R / AC8190ZLCZ-3R	700	1300	190×230	8 cyl, inline	≤205	3175×1208×2055	5000
C8190ZLC-1 / AC8190ZLC-1	650	1200	190×230	8 cyl, inline	≤205	3175×1208×2055	5000
C8190ZLCZ-1R / AC8190ZLCZ-1R	650	1200	190×230	8 cyl, inline	≤205	3175×1208×2055	5000
C8190ZLC-2 / AC8190ZLC-2	540	1000	190×230	8 cyl, inline	≤205	3175×1208×2055	5000
C8190ZLCZ-2R / AC8190ZLCZ-2R	540	1000	190×230	8 cyl, inline	≤205	3175×1208×2055	5000
