Shengdong T12V190ZL-2 500GJ1-PWT-ESM3 Piston connecting rod assembly W12V190.05.00

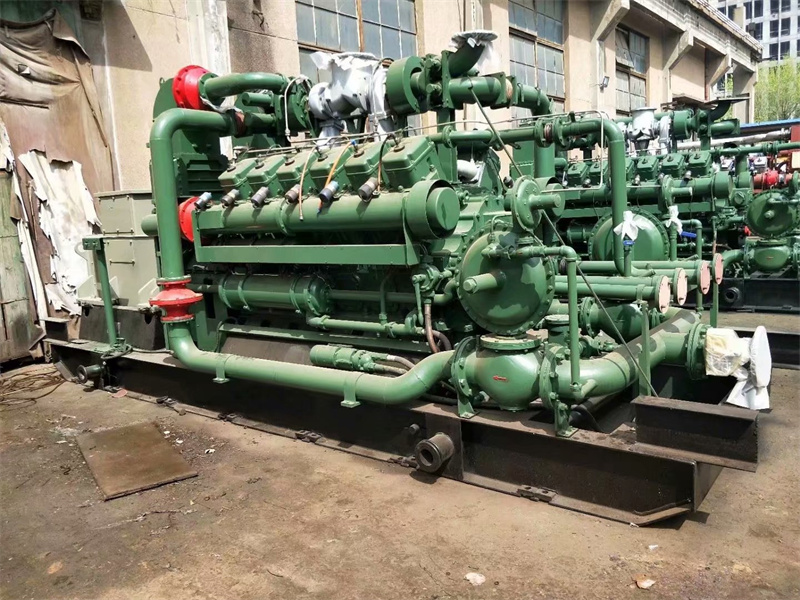

T12V190ZL Engine Parts Supplier
| No. | English Name | Drawing No. |
|---|---|---|
| 1 | Pushrod shaft gasket | 12VB.01.146C-Ⅰ |
| 2 | Pushrod shaft sleeve (bushing) | 12VB.01.05 |
| 3 | Rubber sealing ring of cylinder head water pipe | 12V.01.12 |
| 4 | Cylinder head water pipe | 12V.01.09 |
| 5 | Gasket | 127.01.20.05 |
| 6 | Block water jacket gasket | 12VB.01.87 |
| 7 | Lower bushing | 12VB.01.24A |
| 8 | Upper bushing | 12VB.01.23A |
| 9 | Upper thrust bushing | 12VB.01.21A |
| 10 | Lower thrust bushing | 12VB.01.22A |
| 11 | Water pump gasket | 12VB.01.82 |
| 12 | Bolt M12×130 | GB/T5782 |
| 13 | Gasket | 12VB.11.09 |
| 14 | Gear end gasket | 12VB.01.20.01 |
| 15 | Crankshaft oil seal | HG4-692-67 |
| 16 | Camshaft bearing shell | 12VB.01.34 |
| 17 | Rocker arm sleeve (free end) | 12VB.01.43 |
| 18 | Cylinder liner sealing ring | 12V.01.14 |
| 19 | Wide cylinder liner sealing ring | 12VB.01.136 |
| 20 | Upper cylinder liner sealing ring | 12VB.01.134 |
| 21 | Cylinder liner | 12V.01.02C |
| 22 | Block inspection cover gasket | 12VB.01.45 |
| 23 | Bolt M10×100 | GB/T5782 |
| 24 | Pressure relief valve gasket | 12V.01.79A |
| 25 | Turbine oil channel gasket | 12V190.01.01 |
| 26 | Oil seal | 12V.01.61B |
| 27 | Sealing gasket | 12V.01.59B |
| 28 | Flywheel gasket | 12V.01.62B |
| 29 | Gasket | 12V.01.93 |
| 30 | Washer | GB/T97.110 |
| 31 | Rocker arm sleeve (flywheel end) | 12VB.01.41A |
| 32 | Intermediate rocker arm sleeve | 12VB.01.42 |
| 33 | Cylinder cover bolt gasket | 12VB.01.131 |
| 34 | Cylinder cover nut | 12VB.01.07A |
| 35 | Cylinder head | W12V190.03.00 |
| 36 | Bolt M8×30 | GB/T5783 |
| 37 | Copper washer | Q/SDL14009-2003 |
| 38 | Upper housing gasket | 12VB.03.13A |
| 39 | Lower housing gasket | 12VB.03.12A |
| 40 | Nut M14×1.5 | GB/T6173 |
| 41 | Washer | GB/T93 |
| 42 | Screw | 12VB.03.53B |
| 43 | O-ring 35.5×3.55 | GB/T3452.1 |
| 44 | O-ring 38.7×3.55 | GB/T3452.1 |
| 45 | Hex nut | 127.03.15 |
| 46 | Gasket | 127.15.24 |
| 47 | Retaining ring | 12V.05.14 |
| 48 | Piston rings | 12VB.05.20/11/09B |
| 49 | Connecting rod bolt | 12VB.05.10.03 |
| 50 | Upper connecting rod bushing | 12VB.05.10.04 |
| 51 | Lower connecting rod bushing | 12VB.05.10.05 |
| 52 | Connecting rod nut | 12VB.05.10.09 |

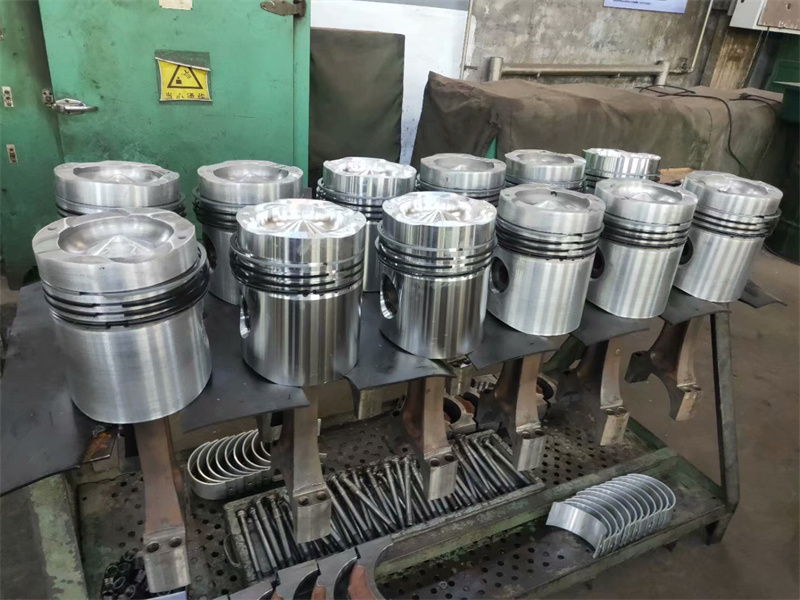

| 53 | Piston & connecting rod assembly | W12V190.05.00 |
Product Offerings
Jinan Diesel Engine: Jichai 190 series, 6190, 8190, 12V190, 16V190 diesel and gas engine.
Shengdong Gas Generator: 500kW, 700kW gas generators.
Weichai Engines: 6170Z, 8170Z, CW6200, CW8200, R6160Z, WP12, and WP series.
Weichai Baudouin Series: 6M26, 6M33, 12M26, 12M33, 16M33, 12M55, M26, M33, M55 Series.
Zichai Engines: Z6170, Z8170, 6210, 8210, LB8250, LC8250, ZC6200, Z6180, Z8180, Z6150, 6300, 8300.

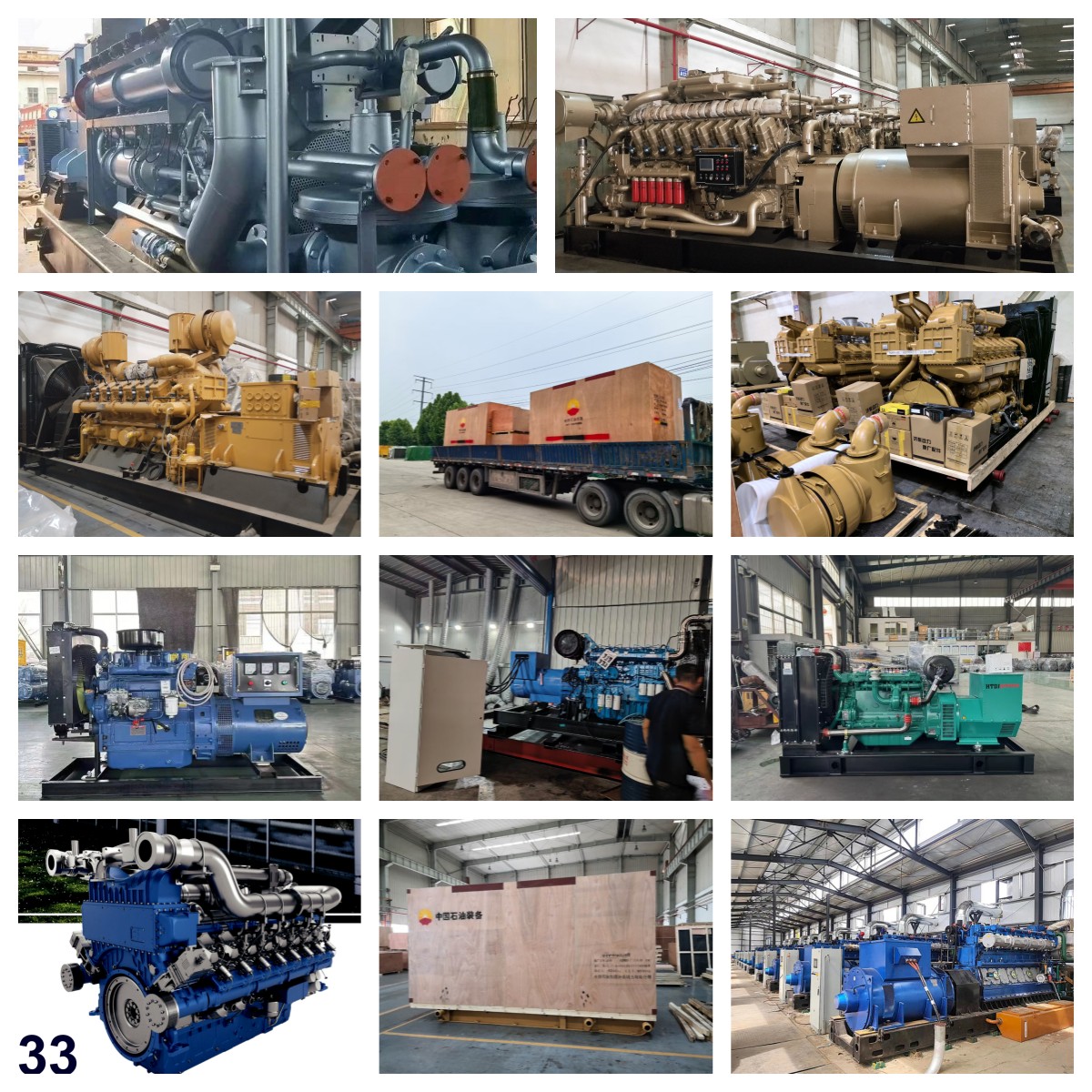

Generator Sets: (20-2000KW) from leading domestic brands such as Jichai, Shengdong, Zichai, and Yuchai.
