spare parts for maintaining weichai WHM6160 diesel ship boat engine

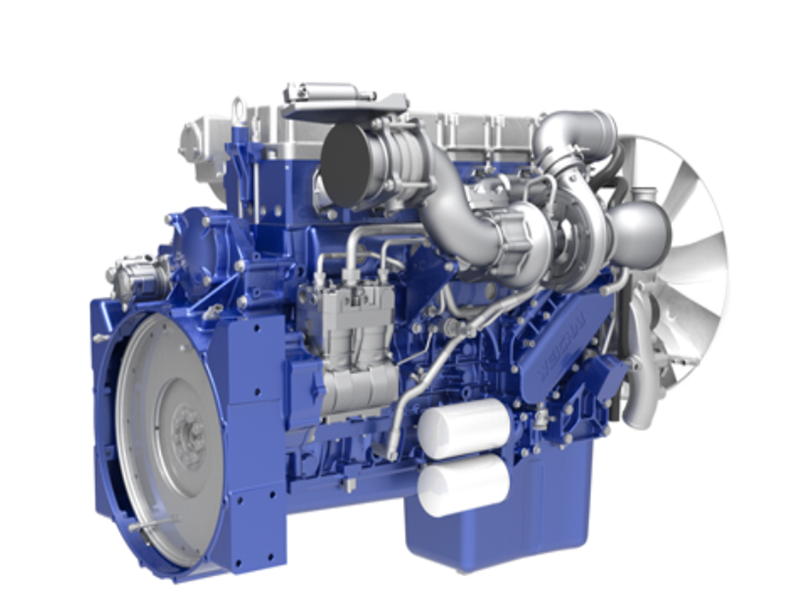

The WHM6160 series marine engines are designed and developed by WEICHAI POWER, power range from 220-556kw.
WHM6160 Engine Specifications
| Parameter | WHM6160 | WHM6160M |
|---|---|---|
| Type | Four-stroke, water-cooled, inline, turbocharged intercooled | Four-stroke, water-cooled, inline, turbocharged intercooled |
| Number of Cylinders | 6 | 6 |
| Bore × Stroke (mm) | 160 × 200 | 160 × 216 |
| Displacement (L) | 24.12 | 26.04 |
| Oil Consumption Rate (g/kW·h) | ≤0.8 | ≤0.8 |
| Noise Level (dB(A)) | ≤105 | ≤105 |
| Starting Method | Pneumatic/Electric | Pneumatic/Electric |
| Idle Speed (rpm) | 450-650 | 450-650 |
| Crankshaft Rotation | Counterclockwise (flywheel end) | Counterclockwise (flywheel end) |
| Net Weight (kg) | 3100 | 3200 |
| Dimensions (L × W × H, mm) | 2510 × 1245 × 1815 | 2510 × 1245 × 1865 |
WHM6160 Model Performance Parameters
| Model | Air Intake | Rated Power (kW/PS) | Speed (rpm) | Fuel Injection | Emission Level | Power Class |
|---|---|---|---|---|---|---|
| WHM6160C300-1 | Turbocharged | 220/300 | 1000 | Mechanical Pump | IMO II/China I | P1 |
| WHM6160C350-1 | Turbocharged | 258/350 | 1000 | Mechanical Pump | IMO II/China I | P1 |
| WHM6160C408-1 | Turbocharged | 300/408 | 1000 | Mechanical Pump | IMO II/China I | P1 |
| WHM6160C450-1 | Turbocharged | 330/450 | 1000 | Mechanical Pump | IMO II/China I | P1 |
| WHM6160C450-2 | Turbocharged | 330/450 | 1200 | Mechanical Pump | IMO II/China I | P1 |
| WHM6160C490-2 | Turbocharged | 360/490 | 1200 | Mechanical Pump | IMO II/China I | P1 |
| WHM6160MC600-2 | Turbocharged | 441/600 | 1200 | Mechanical Pump | IMO II/China I | P1 |
| WHM6160MC660-3 | Turbocharged | 485/660 | 1350 | Mechanical Pump | IMO II/China I | P1 |
| WHM6160MC718-5 | Turbocharged | 528/718 | 1500 | Mechanical Pump | IMO II/China I | P1 |
| WHM6160MC756-5 | Turbocharged | 556/756 | 1500 | Mechanical Pump | IMO II/China I | P1 |

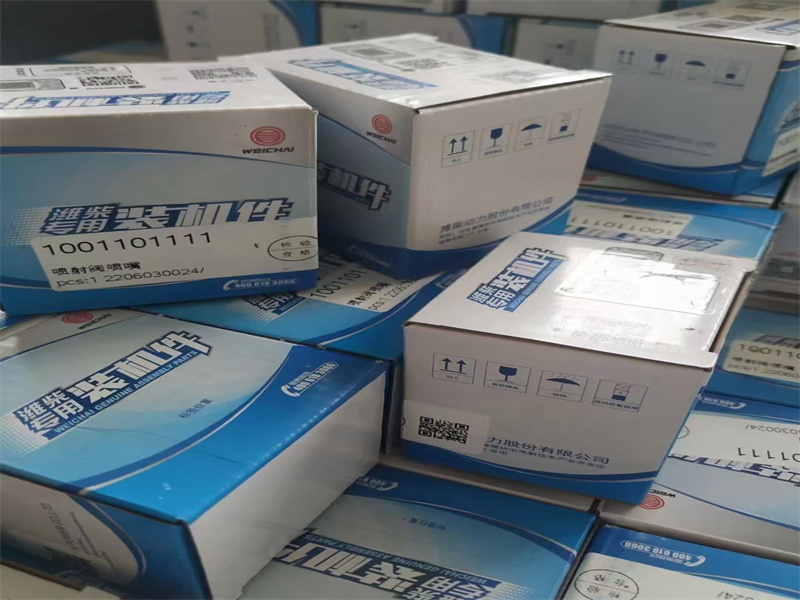

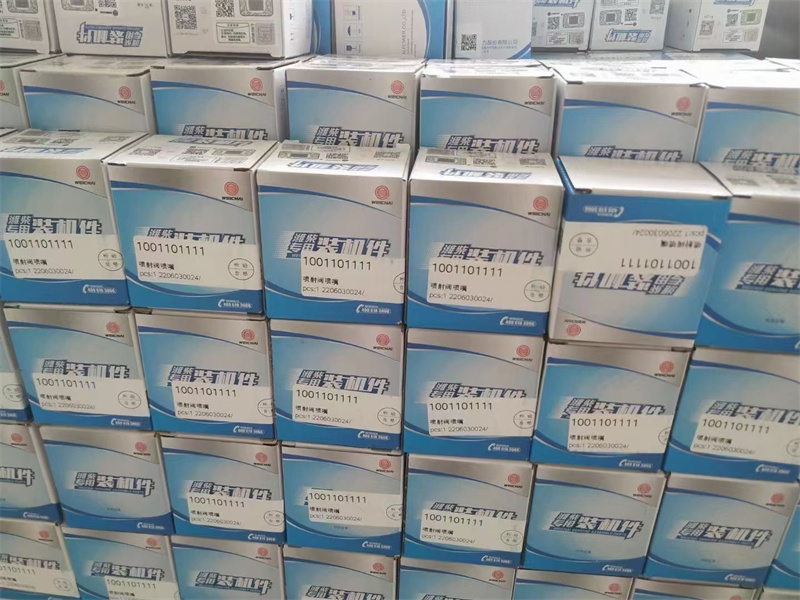

Parts Needs for Maintaining WHM6160
When it comes to maintaining and optimizing the performance of WHM6160 and WHM6160M marine engines, HONGFAN POWER stands out as a reliable spare parts supplier. We have more than 10 years experience and professional technician to help solve your problems.
Contact HONGFAN POWER Today
Let HONGFAN POWER be your first choice for WHM6160 marine engine parts. With our extensive inventory, technical expertise, and commitment to customer satisfaction, we are ready to support your engine operations with top-tier products and services.
