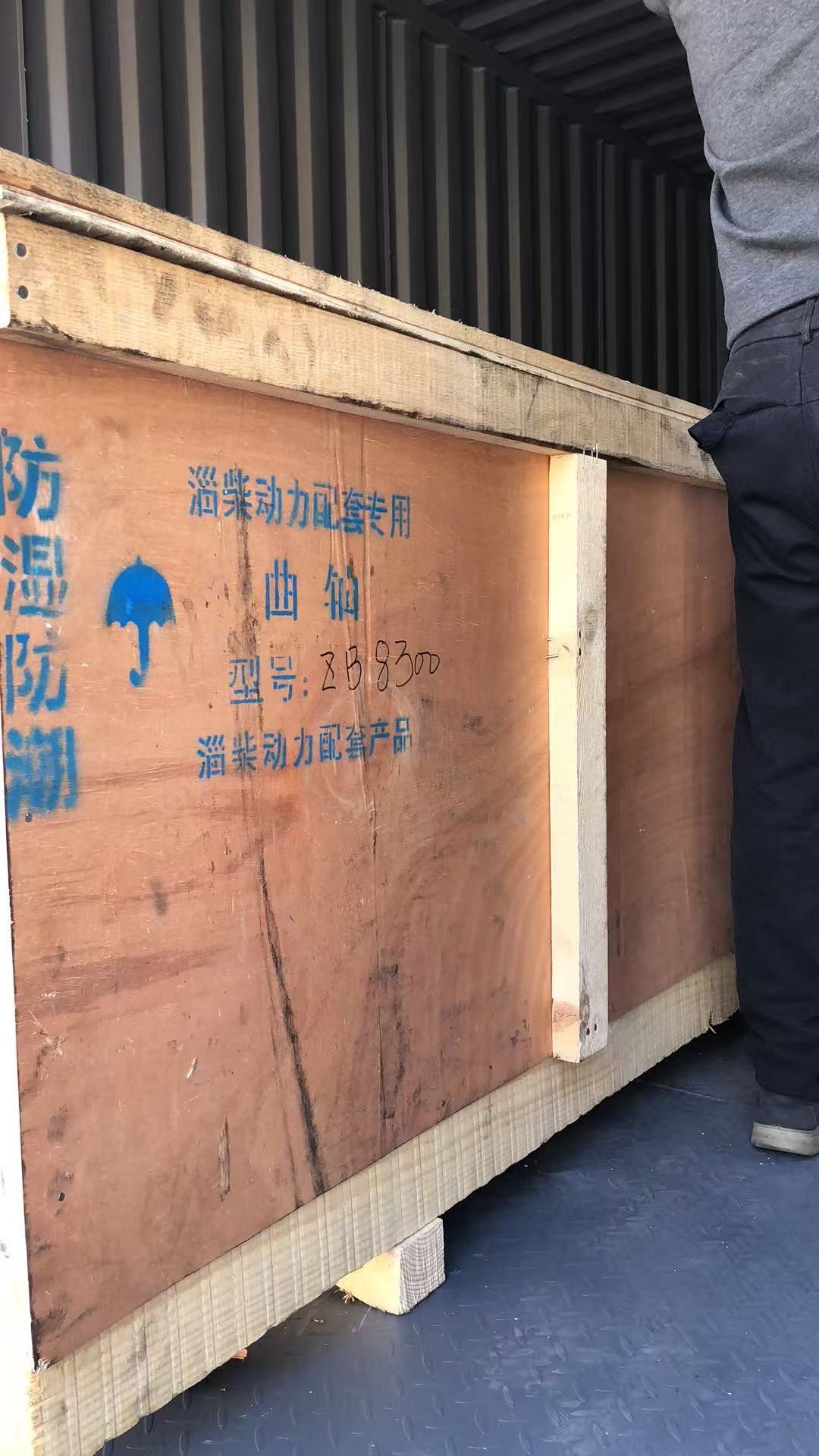

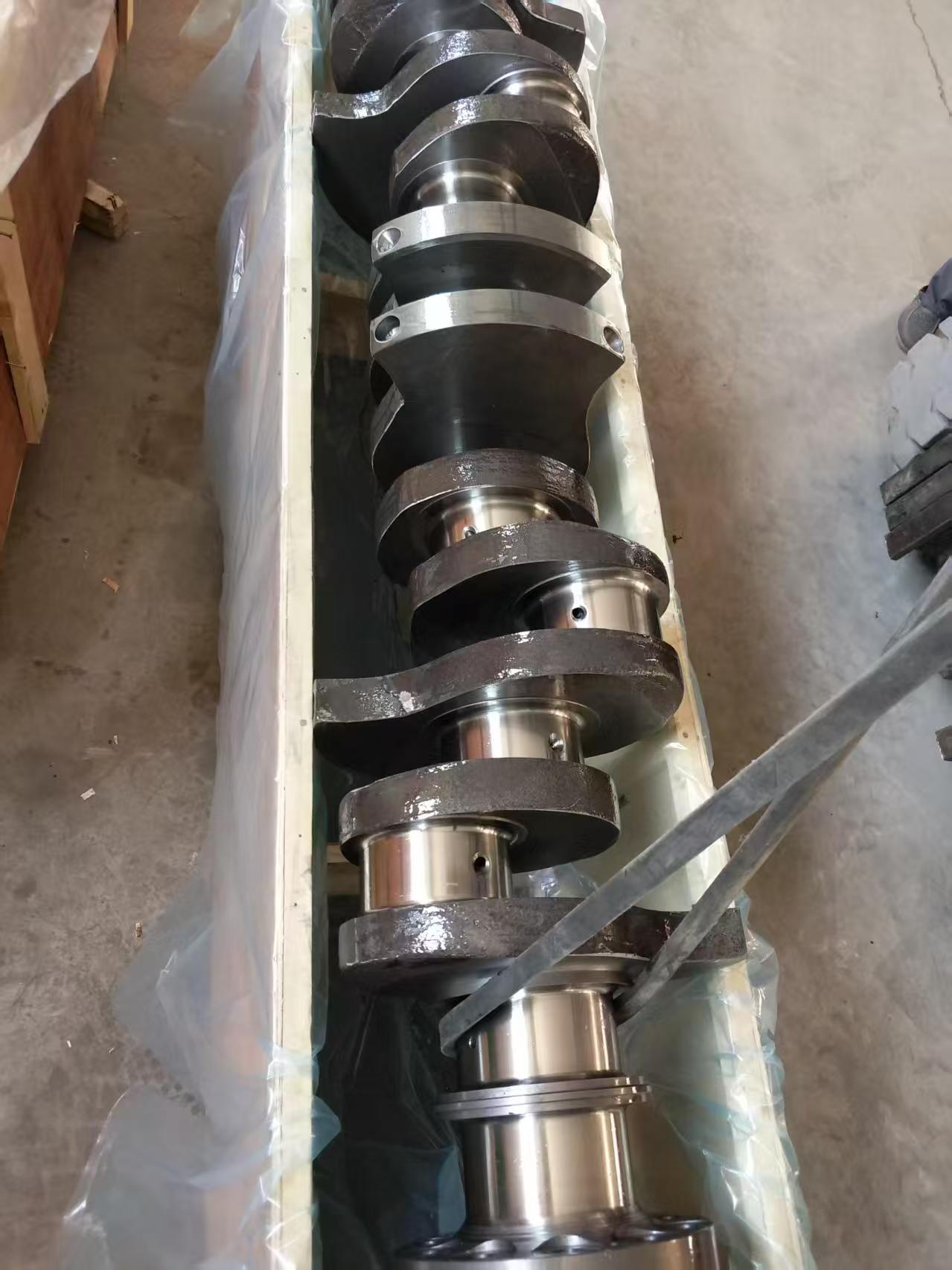

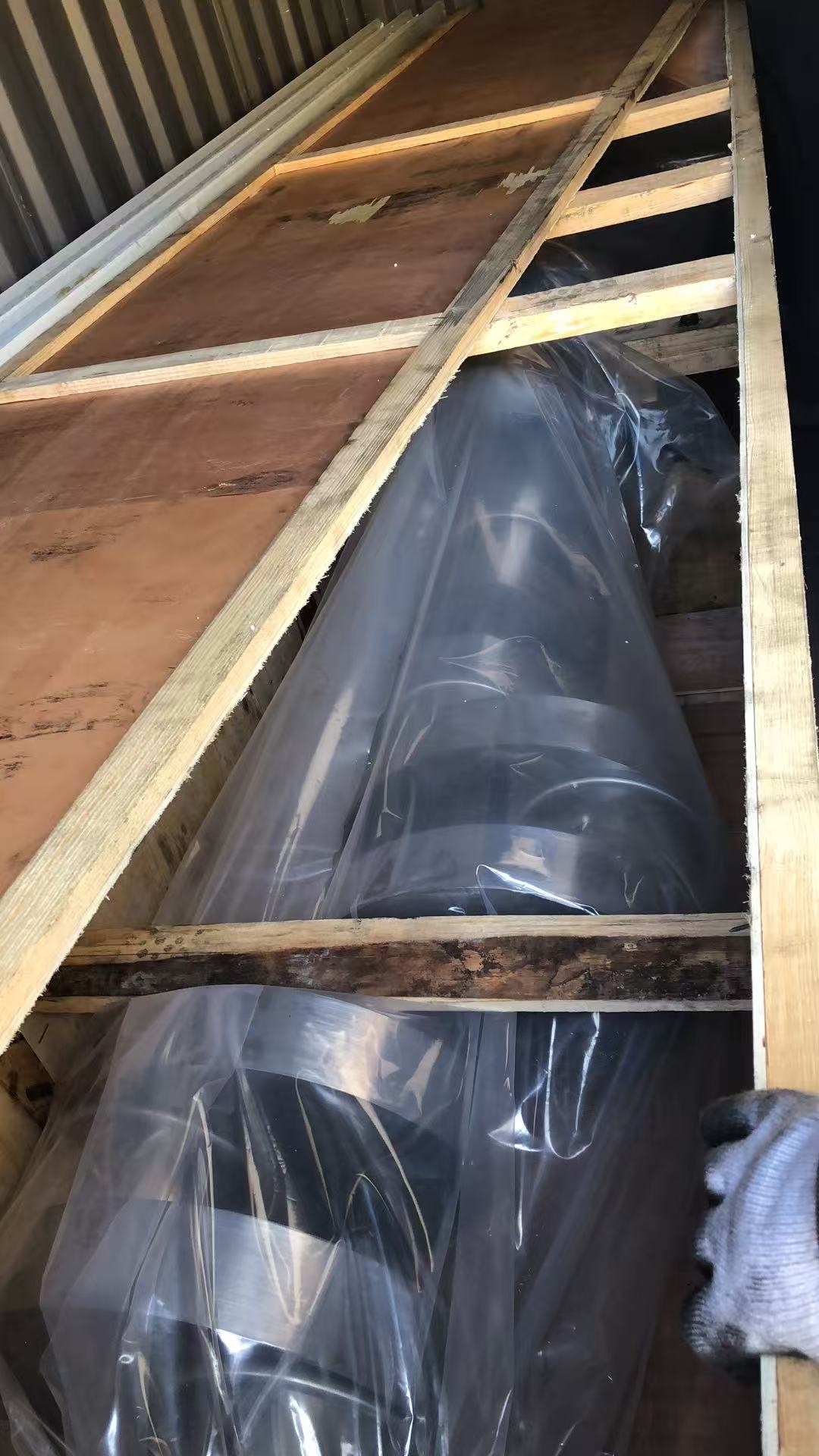

ZICHAI 8300ZLCA marine diesel generator 1103KW 600r/min crankshaft
zichai 8300 Engine Technical Specification Table
| Item | Parameter | Model Series |
|---|---|---|
| Type | In-line, four-stroke, direct injection, reversible or irreversible, turbocharged or naturally aspirated, water-cooled or uncooled | 8300 Series |
| No. of Cylinders | 8 | — |
| Bore × Stroke (mm) | 300 × 380 | — |
Performance Parameters
| Model | 8300C / 8300CZ | 8300DZ / 8300DZC | 8300ZLCA-1 | 8300ZLDCZA-2 | 8300ZLZCZA-3 | 8300ZLZCA-4 |
|---|---|---|---|---|---|---|
| Continuous Speed (r/min) | 450 | 450 | 500 | 500 | 600 | 600 |
| Continuous Power (kW) | 441 | 735 | 808 | 808 | 882 | 1103 |
| Revolutions per Hour | 465 / 485 | 465 / 808 | 516 / 889 | 516 / 970 | 619 / 1213 | — |
| Mean Effective Pressure (MPa) | 0.547 | 0.912 | 1.003 | 0.902 | 0.985 | 1.026 |
| Mean Piston Speed (m/s) | 5.7 | — | 6.333 | — | 7.6 | — |
| Minimum Steady Speed under Load (r/min) | 180 | — | 200 | — | 240 | — |
| Specific Fuel Consumption (g/kW·h) | 215 | — | 210 | — | — | — |
| Specific Lube Oil Consumption (g/kW·h) | 0.9 | — | — | — | — | — |
System & Structural Data
| Item | Specification |
|---|---|
| Rotation Direction | Facing flywheel: clockwise (right turn), counterclockwise (left turn) |
| Starting Method | Compressed air starting |
| Cooling Method | Closed or open water cooling |
| Lubrication Method | Pressure lubrication and hand oiling |
| Height of Lifting Piston from Crankshaft (mm) | 2120 |
| Overall Dimensions (L × W × H, mm) | 4695×1288×2555 / 4810×1150×2555 / 4960×1288×2630 |
| Net Weight (kg) | 12000 / 12500 / 13500 |
